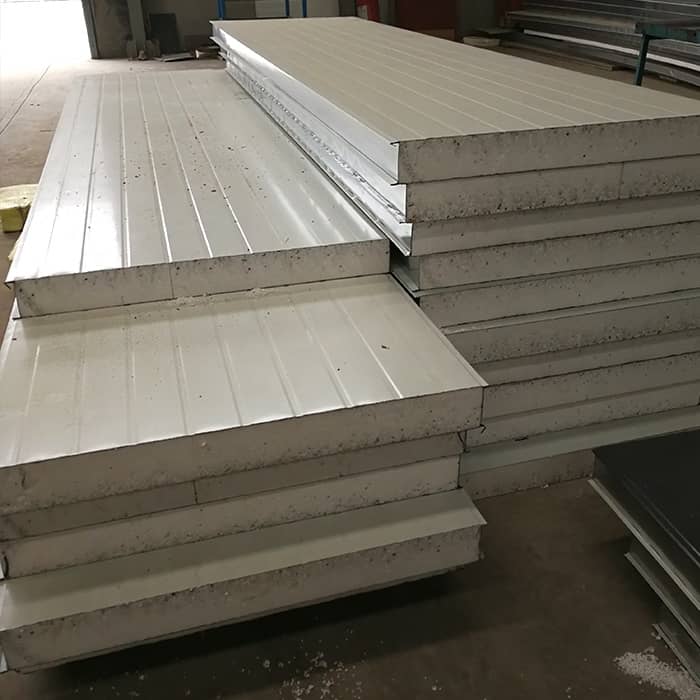

PUF Wall Panel
High-insulation exterior wall panel for factories, warehouses and temperature-sensitive buildings.
- Core
- PU or PIR foam, 38-45 kg/m³
- Fire
- B1 option
- Best for
- Insulated walls, warehouses
Product Line
PUF Sandwich Panel
High-insulation PU/PIR foam-core wall, roof and cold room panels for energy-focused buildings.

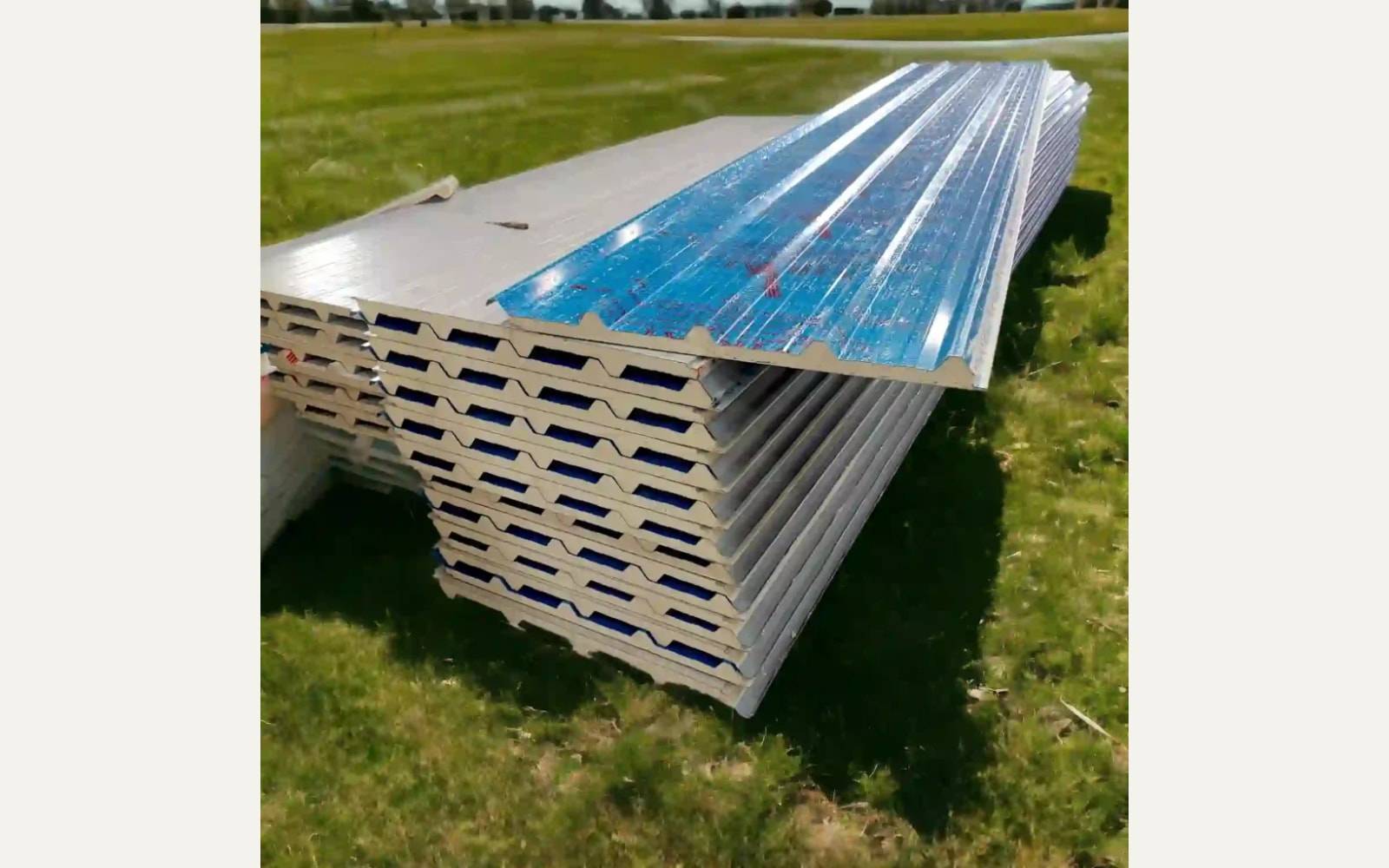

BFTPANEL PUF sandwich panels use polyurethane or PIR continuous foaming to deliver low thermal conductivity in a steel-faced insulated panel. The PUF line covers general insulated wall and roof panels plus cold-room insulation, making it the broadest foam-core option when insulation, weight and fire performance must be compared.
Core: Polyurethane (PU) / PIR continuous foaming
Different cores, profiles and fire ratings for different projects. Pick the model that matches your spec, or send us your requirements and we will recommend.

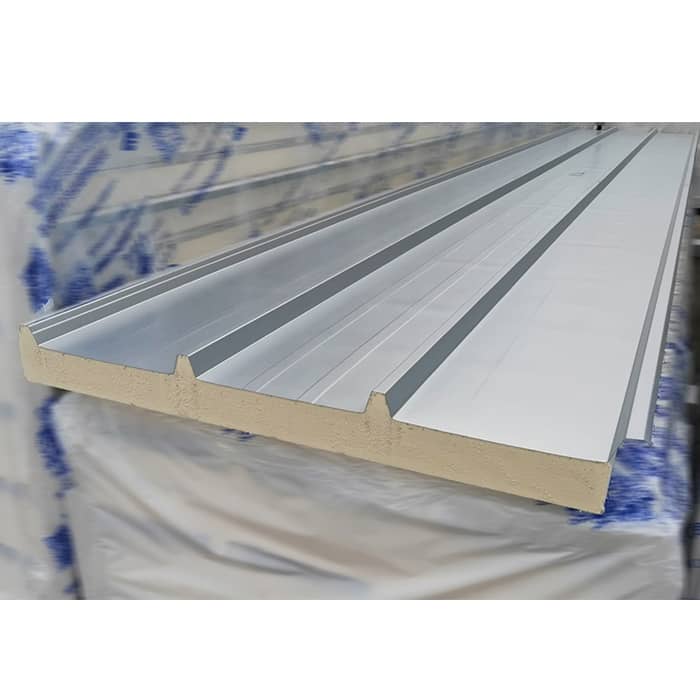

PUF Roof Panel
Lightweight insulated roof panel with strong thermal performance for industrial roofs.
- Core
- PU or PIR foam, 38-45 kg/m³
- Fire
- B1 option
- Best for
- Insulated roof systems

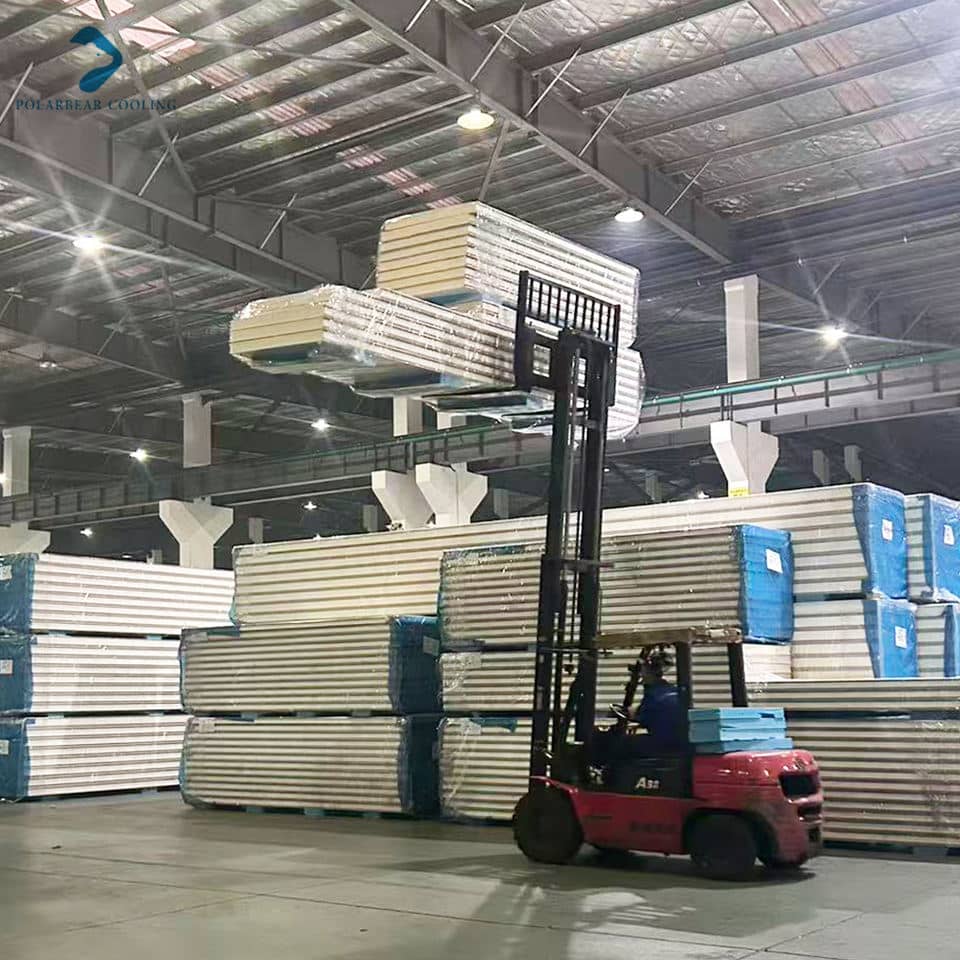

PU/PIR Insulated Panel for Cold Storage
Low thermal conductivity foam panel for chill rooms, freezers and cold chain warehouses.
- Core
- PU/PIR foam, 40-45 kg/m³
- Fire
- B1 / PIR option
- Best for
- Cold chain, freezer rooms
Product Details
Why projects specify this panel.
Low thermal conductivity
PU/PIR foam reaches stronger insulation performance than EPS or rock wool at the same thickness.
Wall, roof and cold room use
One foam-core system can be adapted across insulated buildings, industrial roofs and cold chain rooms.
Continuous foaming supply
Foam density, adhesion and profile shape are controlled through continuous production for repeat orders.
PIR fire-performance option
PIR can be reviewed when the project needs better fire behavior than standard PU foam.
Lightweight energy upgrade
Useful for roofs, walls and rooms where insulation value, weight and installation speed all matter.
Factory matching support
Compare PU, PIR, EPS and rock wool by thermal value, fire rating, cost and application risk.
Specifications
Technical parameters.
Standard factory parameters. Custom thickness, density and color are available after specification review. Confirm during quotation.
Factory-direct from Shandong, China
| Thickness | 50 / 75 / 100 / 120 / 150 / 200 mm |
|---|---|
| Core density | 38-45 kg/m³ |
| Thermal conductivity | ≤ 0.022 W/(m·K) |
| Fire rating | B1; PIR option up to B-s2,d0 project-dependent |
| Steel skin | Pre-painted galvanized steel, 0.4-0.6 mm |
| Panel types | Wall / roof / cold room |
| Joint | Tongue-and-groove / cam-lock / concealed screw |
| Coating | PE / HDP / PVDF / cleanroom white option |
Applications
Where this panel is specified.
Cold chain buildings
Freezer rooms, chill rooms, processing zones and logistics warehouses.
Industrial wall and roof
Energy-efficient factory walls and roof systems.
Food processing rooms
Insulated clean zones where washable steel faces are needed.
Commercial insulated buildings
Warehouses, markets and buildings where thermal performance drives the spec.
FAQ
FAQ before quoting puf panel.
Use these answers to prepare a faster quotation request with drawings, quantities and specification notes.
How do I choose the right puf panel?
Choose by application, core material, thickness, fire rating, surface finish and installation method. For puf panel projects, BFTPANEL reviews drawings and recommends the closest specification before quotation.
What information is needed to quote puf panel?
Send building use, wall or roof area, thickness, panel length, coating or finish requirement, accessory list, destination port and any local fire, hygiene or temperature requirement.
Can BFTPANEL provide samples, QC files and export packing?
Yes. The export team can arrange A4 samples, specification files, available certificates, packing labels, loading photos and shipment records according to the order.
Other Product Lines
Explore the full BFTPANEL range.
Cleanroom Panel
Hygienic wall and ceiling panels for pharma, food, electronics, hospital and laboratory cleanrooms.
View detailsCold Room Panel
Insulated cold storage wall, ceiling and cam-lock panels for cold chain, food storage and pharma warehouses.
View detailsRock Wool Panel
Class A non-combustible wall, roof and partition panels for steel-structure factories and warehouses.
View detailsEPS Panel
Lightweight, cost-effective insulated wall and roof panels for prefab buildings, workshops and quick-build sites.
View detailsDecorative Panel
Signature decorative insulated metal siding with stone, brick, wood, stucco and smooth finish codes.
View detailsNeed a quotation for puf panel?
Send building type, thickness, quantity and destination port. We return an export quotation within 2 hours during Asia business hours.
