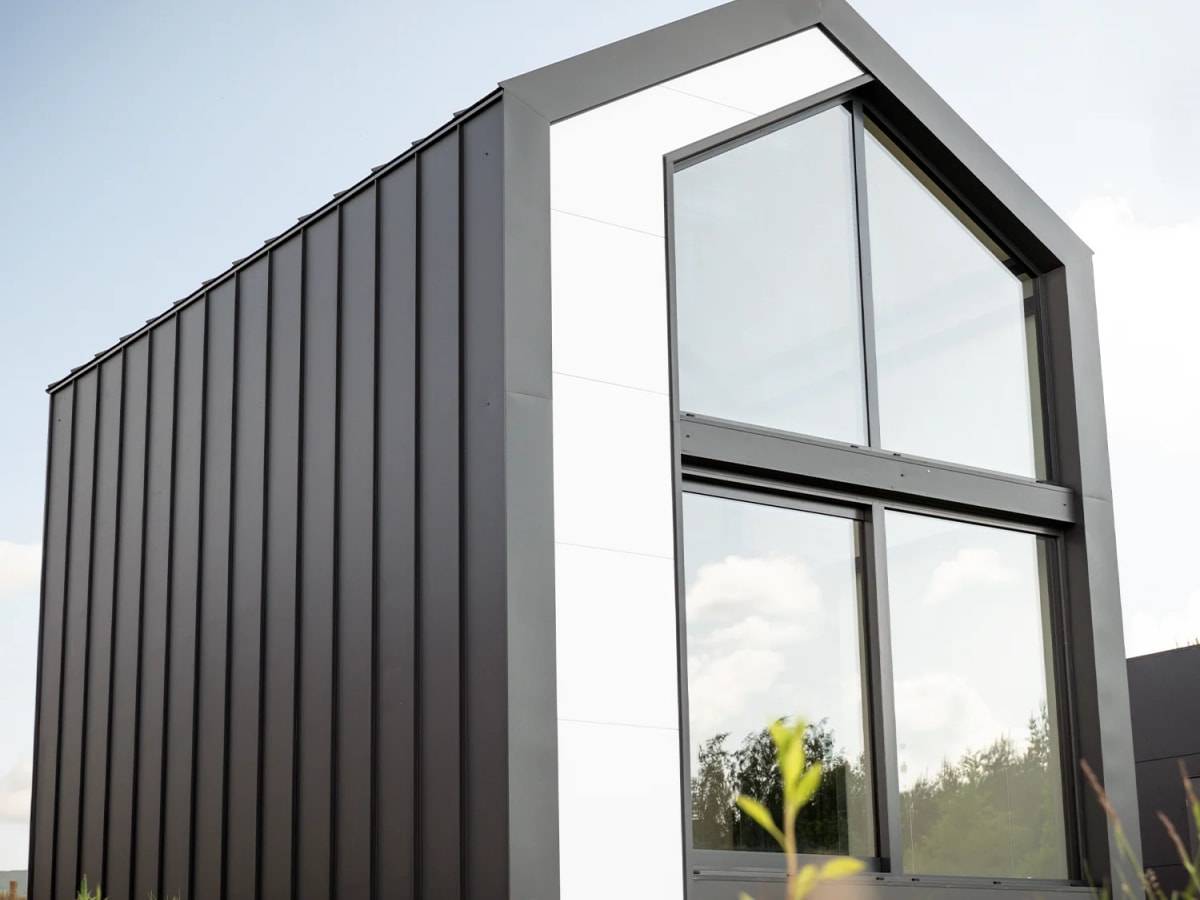

EPS Wall Panel
Flat-face insulated panel for prefab building exteriors, sheds and workshop walls.
- Core
- Self-extinguishing EPS, 14-18 kg/m³
- Fire
- B1 / B2
- Best for
- Factory walls, prefab buildings
Product Line
EPS Sandwich Panel
Lightweight, cost-effective insulated wall and roof panels for prefab buildings, workshops and quick-build sites.
BFTPANEL EPS sandwich panels bond pre-painted galvanized steel to a self-extinguishing expanded polystyrene core. EPS is the economical foam-core option for lightweight insulated wall and roof panels in prefab buildings, sheds, site facilities and basic workshops.
Core: Self-extinguishing expanded polystyrene, 12-18 kg/m³
Different cores, profiles and fire ratings for different projects. Pick the model that matches your spec, or send us your requirements and we will recommend.

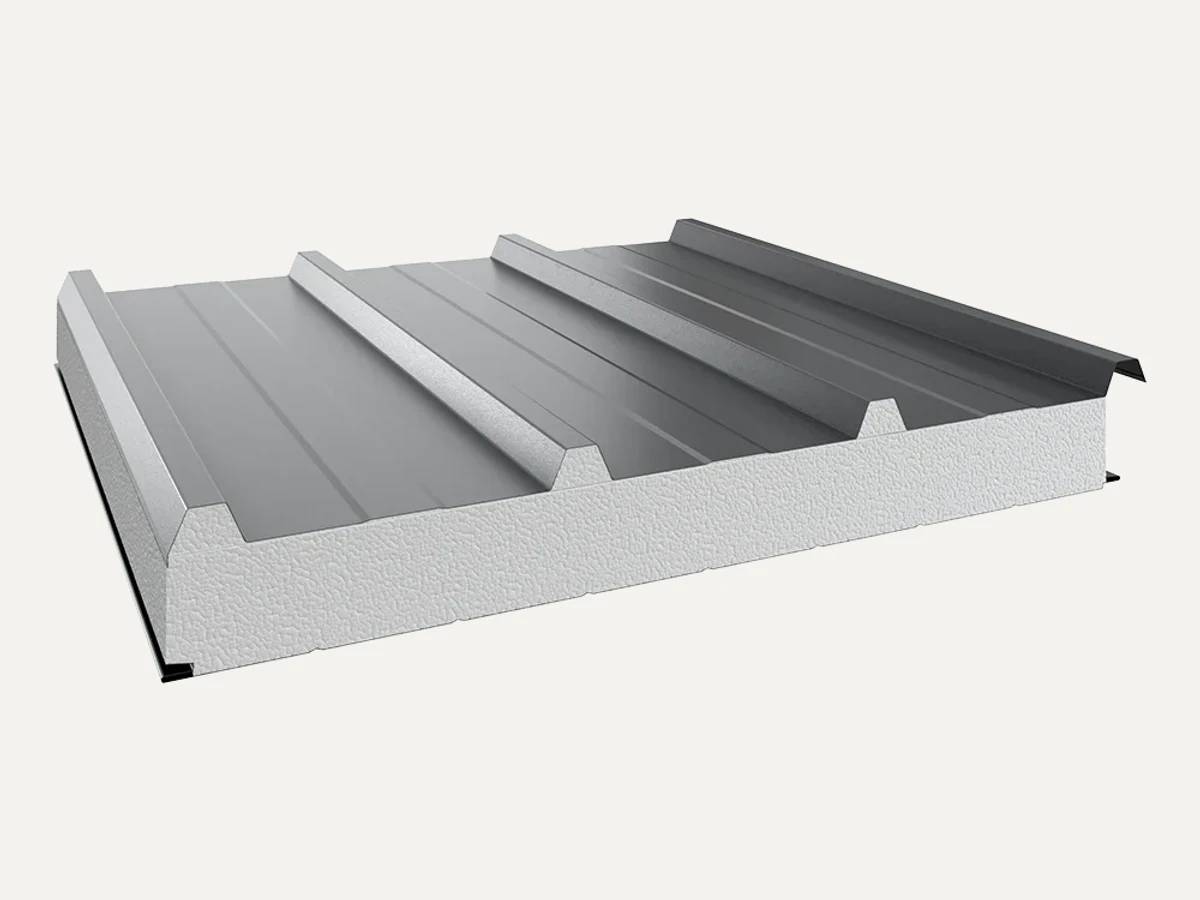

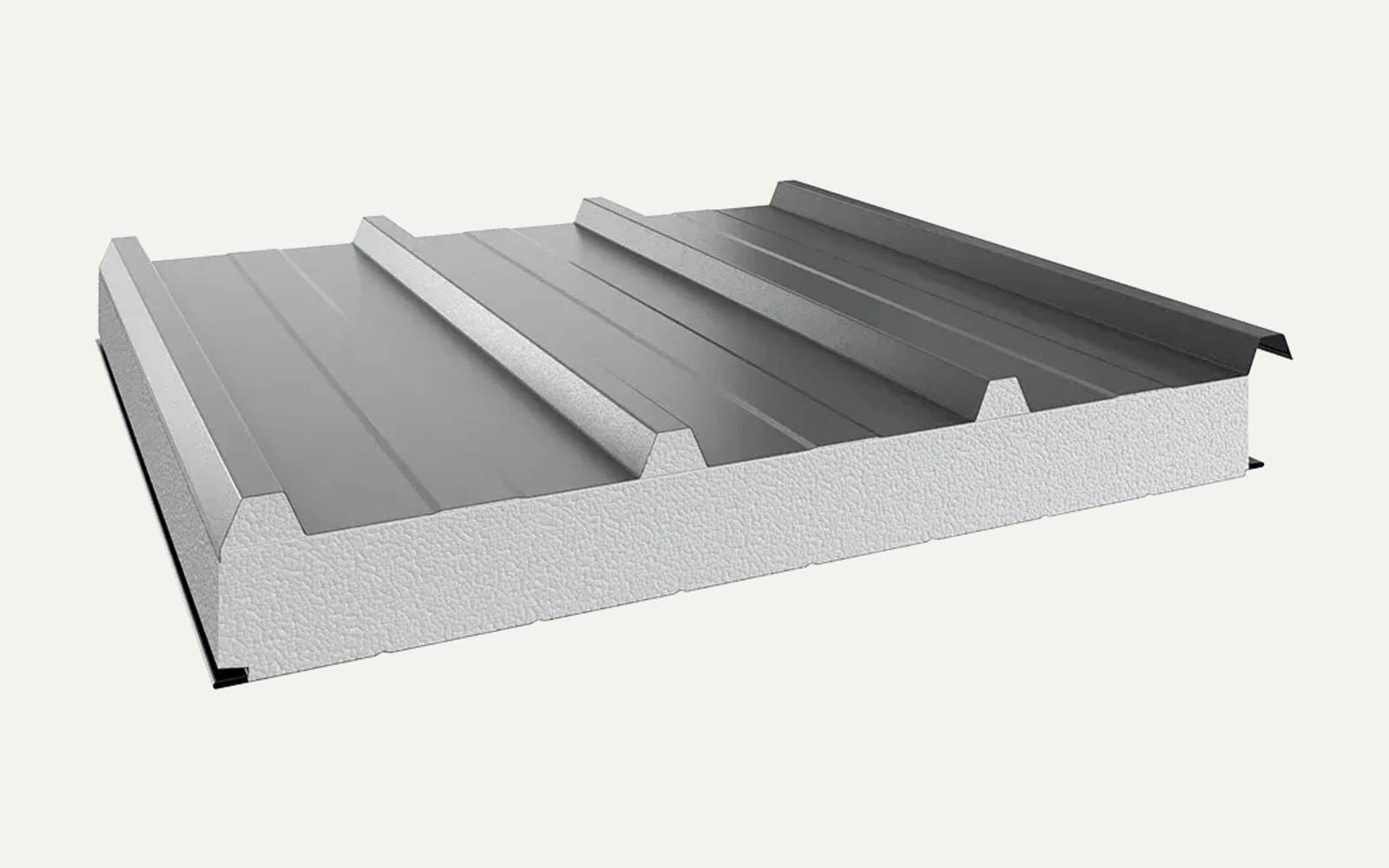

EPS Roof Panel
Trapezoidal lightweight roof panel for warehouses, agricultural sheds and quick-build projects.
- Core
- Self-extinguishing EPS, 14-18 kg/m³
- Fire
- B1 / B2
- Best for
- Warehouse roofs, agricultural sheds

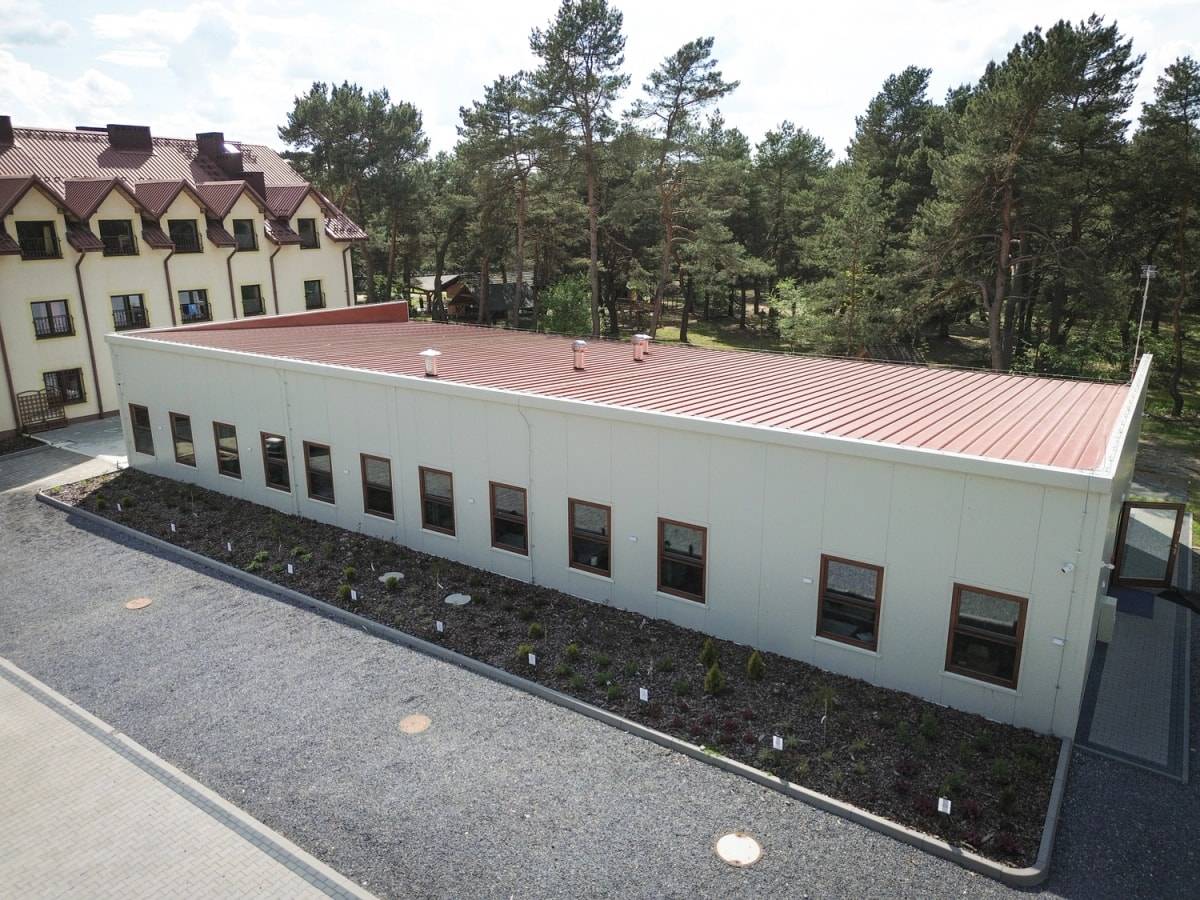

EPS Quick-build Panel
Economical tongue-and-groove panel for temporary buildings and modular site facilities.
- Core
- Lightweight EPS, 12-14 kg/m³
- Fire
- B2
- Best for
- Prefab houses, site offices
Product Details
Why projects specify this panel.
Economical foam core
Lower cost than PU/PIR and rock wool for projects where price and fast delivery drive the specification.
Wall, roof and quick-build use
Available as wall panel, roof panel and economical quick-build panel for lightweight buildings.
Lightweight handling
Reduces structural load, transport weight and installation effort on prefab and temporary projects.
Fast installation
Tongue-and-groove and screw-fixed profiles support quick site enclosure with simple crews.
Self-extinguishing grade
B1/B2 EPS options are available for projects with moderate fire requirements.
Prefab project fit
Common for site offices, dormitories, worker camps, agricultural sheds and budget workshops.
Specifications
Technical parameters.
Standard factory parameters. Custom thickness, density and color are available after specification review. Confirm during quotation.
Factory-direct from Shandong, China
| Standard width | 950 / 1000 / 1150 mm |
|---|---|
| Length | Up to 12,000 mm, transport-limited |
| Thickness | 50 / 75 / 100 / 150 mm |
| Core density | 12 / 14 / 16 / 18 kg/m³ |
| Steel skin | Pre-painted galvanized steel, 0.3-0.5 mm |
| Fire rating | B1 / B2 self-extinguishing |
| Thermal conductivity | λ ≤ 0.041 W/(m·K) |
| Profiles | Wall flat / roof trapezoidal / tongue-and-groove |
Applications
Where this panel is specified.
Steel workshops
Budget wall and roof enclosure for basic steel buildings and sheds.
Prefab housing
Worker dorms, site offices and temporary accommodation.
Agricultural buildings
Sheds, farm storage and simple insulated buildings.
Moderate cold storage
Economical chill rooms and agricultural storage where EPS is accepted.
FAQ
FAQ before quoting eps panel.
Use these answers to prepare a faster quotation request with drawings, quantities and specification notes.
How do I choose the right eps panel?
Choose by application, core material, thickness, fire rating, surface finish and installation method. For eps panel projects, BFTPANEL reviews drawings and recommends the closest specification before quotation.
What information is needed to quote eps panel?
Send building use, wall or roof area, thickness, panel length, coating or finish requirement, accessory list, destination port and any local fire, hygiene or temperature requirement.
Can BFTPANEL provide samples, QC files and export packing?
Yes. The export team can arrange A4 samples, specification files, available certificates, packing labels, loading photos and shipment records according to the order.
Other Product Lines
Explore the full BFTPANEL range.
Cleanroom Panel
Hygienic wall and ceiling panels for pharma, food, electronics, hospital and laboratory cleanrooms.
View detailsCold Room Panel
Insulated cold storage wall, ceiling and cam-lock panels for cold chain, food storage and pharma warehouses.
View detailsRock Wool Panel
Class A non-combustible wall, roof and partition panels for steel-structure factories and warehouses.
View detailsPUF Panel
High-insulation PU/PIR foam-core wall, roof and cold room panels for energy-focused buildings.
View detailsDecorative Panel
Signature decorative insulated metal siding with stone, brick, wood, stucco and smooth finish codes.
View detailsNeed a quotation for eps panel?
Send building type, thickness, quantity and destination port. We return an export quotation within 2 hours during Asia business hours.
