Handmade Rock Wool Cleanroom Panel
High fire performance and rigidity for GMP cleanrooms, hospitals and sterile production rooms.
- Core
- Vertical-fiber rock wool, 100-120 kg/m³
- Fire
- Class A
- Best for
- Pharma GMP, hospitals, sterile rooms
Product Line
Cleanroom Sandwich Panel
Hygienic wall and ceiling panels for pharma, food, electronics, hospital and laboratory cleanrooms.
BFTPANEL cleanroom sandwich panels are engineered for controlled environments where flatness, cleanability and fire performance matter more than decorative finish. Smooth pre-painted galvanized steel surfaces are bonded to rock wool, PU/PIR or magnesium oxide systems, with flush joints and matching profiles for ISO Class 5-8, GMP and HACCP projects.

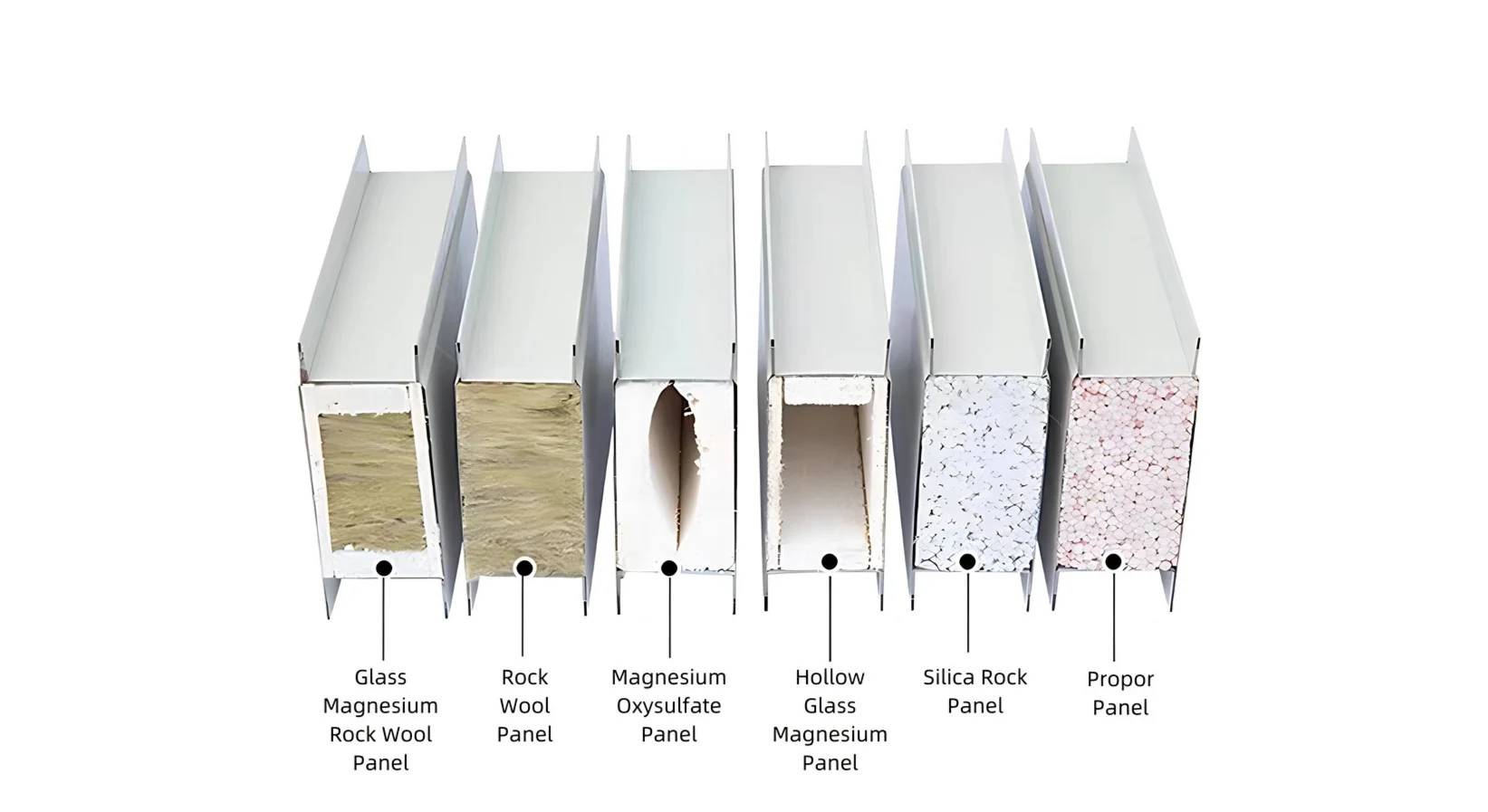

Core: Rock wool / PU or PIR / MgO
Different cores, profiles and fire ratings for different projects. Pick the model that matches your spec, or send us your requirements and we will recommend.

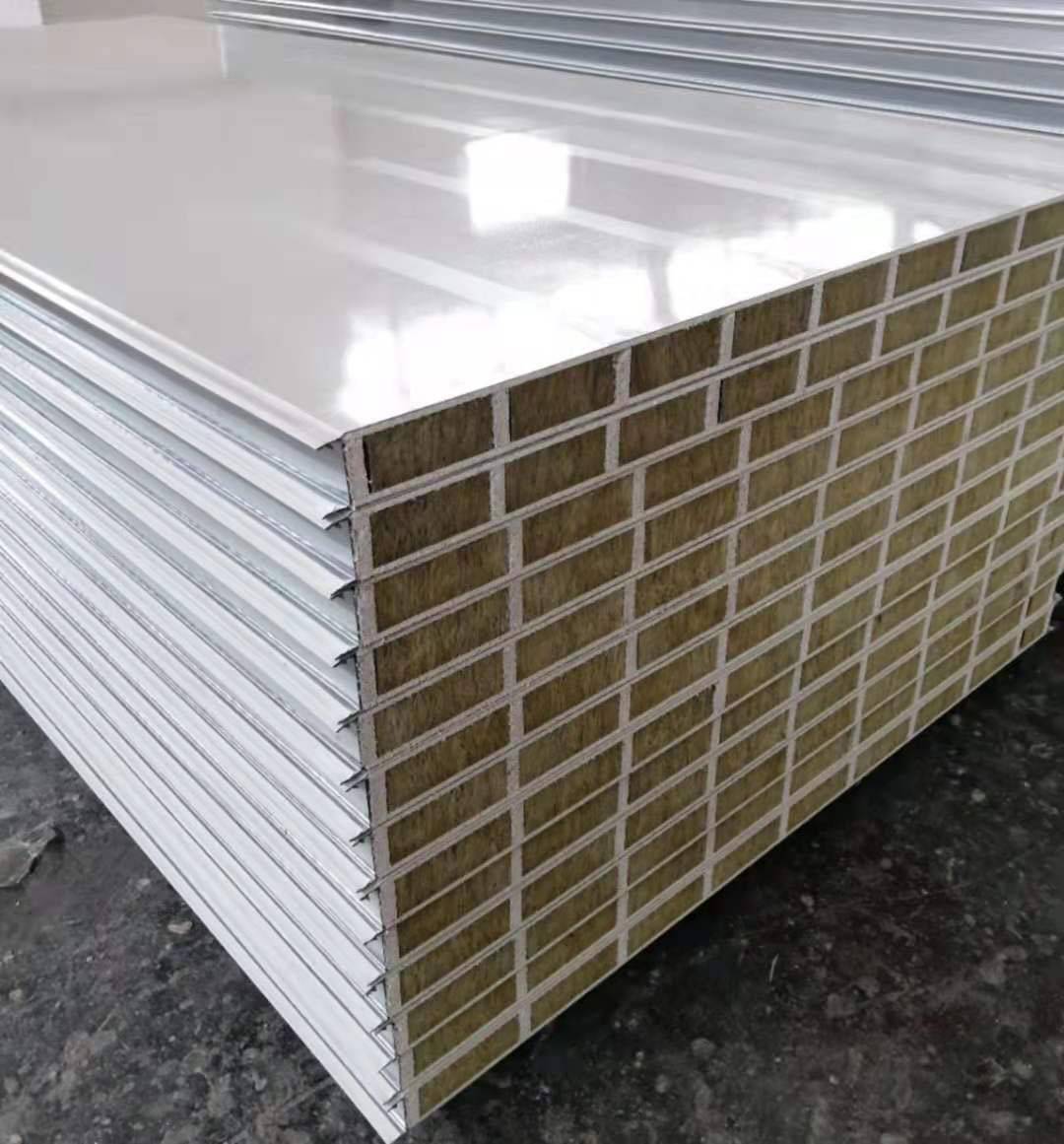

Handmade MgO + Rock Wool Cleanroom Panel
Moisture-resistant face board with Class A core for damp rooms and frequent wipe-down areas.
- Core
- Magnesium oxide board + rock wool composite
- Fire
- Class A
- Best for
- Hospitals, laboratories, dispensing rooms

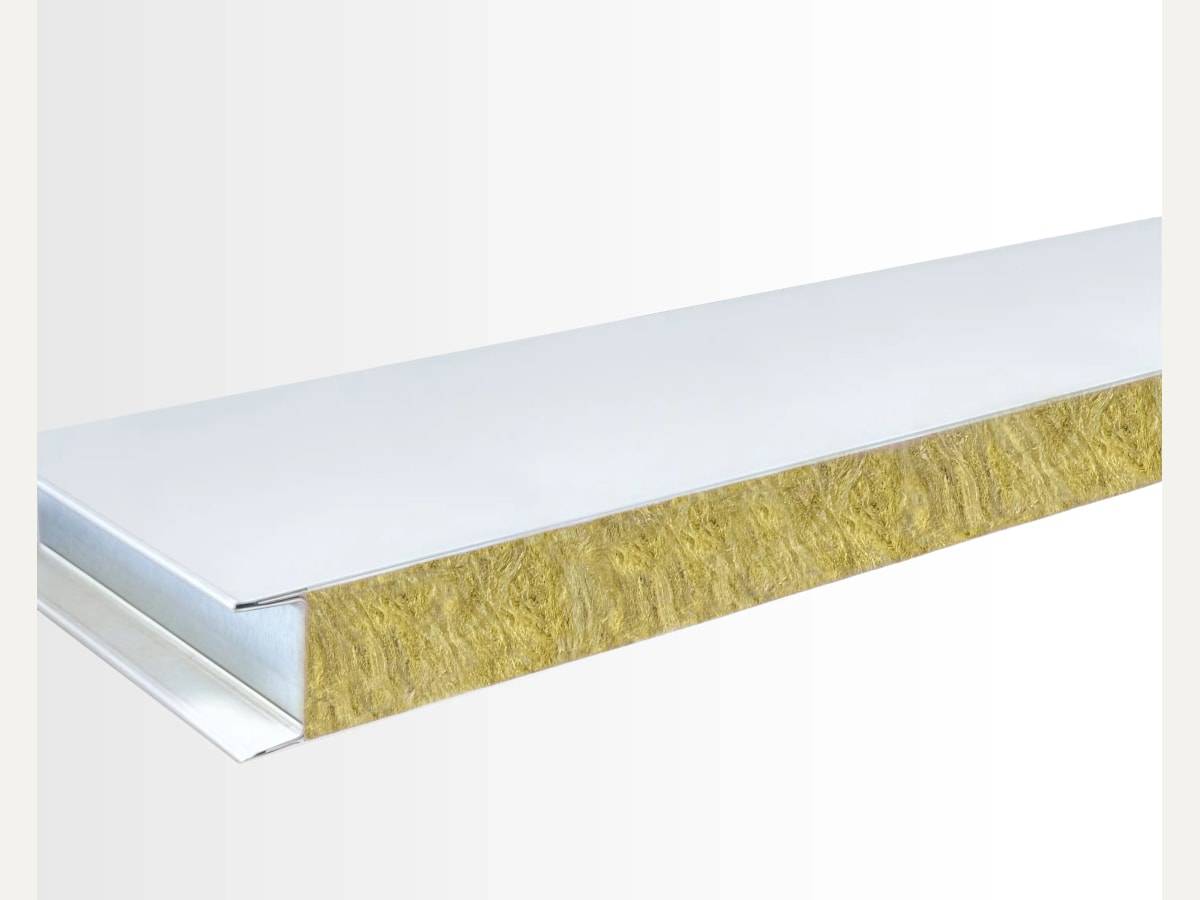

Machine-made Rock Wool Cleanroom Panel
Continuous production gives tight tolerance and faster lead time for larger cleanroom projects.
- Core
- Continuous-line rock wool, 100 kg/m³
- Fire
- Class A
- Best for
- Food, beverage, electronics cleanrooms
Product Details
Why projects specify this panel.
GMP and HACCP ready
Flat, non-porous galvanized steel skin with cleanroom white coating. Easy to wipe down with fewer dust traps.
Flush joint systems
Handle-bar, cam-lock and tongue-and-groove options help build smooth walls and removable maintenance access.
Cleanroom envelope supply
Wall panels, ceiling panels, coves, corners, doors, windows and aluminum profiles can be quoted together.
Fire-rated core options
Rock wool and MgO systems support Class A requirements where pharma, hospital or laboratory codes are strict.
Tight tolerance
Stable panel width, surface flatness and edge details help long cleanroom wall runs align on site.
Factory-direct project matching
Select core, thickness, joint and coating by cleanliness class, fire code, humidity and installation method.
Specifications
Technical parameters.
Standard factory parameters. Custom thickness, density and color are available after specification review. Confirm during quotation.
Factory-direct from Shandong, China
| Standard width | 950 / 1150 / 1180 mm |
|---|---|
| Length | Up to 12,000 mm, project-customized |
| Thickness | 50 / 75 / 100 mm |
| Steel skin | Pre-painted galvanized steel, 0.4-0.6 mm |
| Surface coating | Cleanroom white PE / antibacterial coating option |
| Core options | Rock wool / PU or PIR / MgO |
| Fire rating | Class A for rock wool or MgO systems |
| Joint | Flush handle bar / cam-lock / tongue-and-groove |
Applications
Where this panel is specified.
Pharmaceutical plants
GMP cleanrooms, dispensing rooms, sterile filling rooms and storage corridors.
Food and beverage
HACCP production halls for dairy, meat, beverage and ready-meal plants.
Hospitals and laboratories
Operating rooms, ICU, CSSD, lab rooms and medical clean zones.
Electronics and optics
ISO Class 5-8 cleanrooms for SMT, optics, battery and precision assembly.
FAQ
FAQ before quoting cleanroom panel.
Use these answers to prepare a faster quotation request with drawings, quantities and specification notes.
How do I choose the right cleanroom panel?
Choose by application, core material, thickness, fire rating, surface finish and installation method. For cleanroom panel projects, BFTPANEL reviews drawings and recommends the closest specification before quotation.
What information is needed to quote cleanroom panel?
Send building use, wall or roof area, thickness, panel length, coating or finish requirement, accessory list, destination port and any local fire, hygiene or temperature requirement.
Can BFTPANEL provide samples, QC files and export packing?
Yes. The export team can arrange A4 samples, specification files, available certificates, packing labels, loading photos and shipment records according to the order.
