BFTPANEL
Insulated Wall, Roof and Cold Room Panels

Sandwich Panel Manufacturer

BFTPANEL is a sandwich panel manufacturer supplying rock wool, EPS, PU/PIR, wall, roof and cold room panel systems for B2B export projects.

Request Product QuoteBrowse Product Options

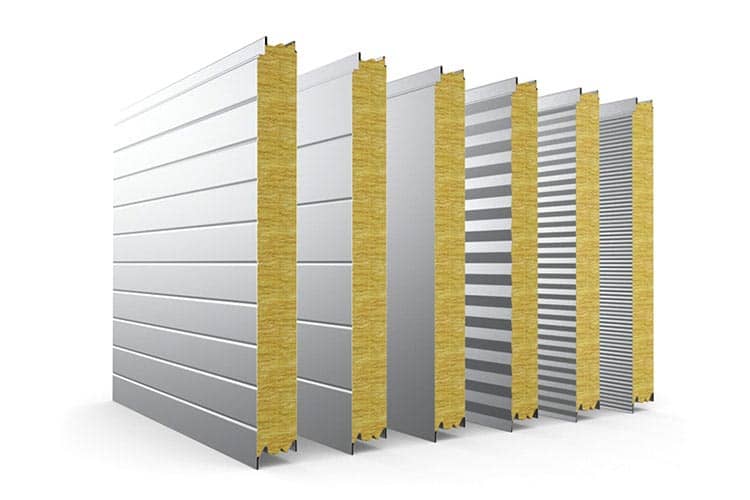

Rock wool and foam sandwich panel samples with visible insulation cores

Selection Guide

Choose sandwich panels by project requirement

A sandwich panel is a factory-made insulated building panel with two metal skins and a core material such as rock wool, EPS, PU or PIR. BFTPANEL supplies sandwich panel systems for industrial walls, roofs, cleanrooms, cold rooms, warehouses and export construction projects. Buyers usually compare panels by fire rating, insulation value, thickness, span, coating, joint type and container loading plan. Rock wool is commonly selected for fire resistance, EPS for economy, and PU/PIR for stronger thermal insulation in cold-chain or temperature-controlled buildings. For a faster quotation, send the building use, panel thickness, core material, quantity, drawing if available, and destination port. BFTPANEL then checks the matching panel type, packing method, lead time and FOB or CIF price for the project. This gives importers a practical comparison before samples, shop drawings or purchase orders are issued.

By Core Material

  • Rock Wool
  • EPS
  • PU
  • PIR

By Position

  • Wall Panel
  • Roof Panel
  • Partition Panel

By Application

  • Cold Room
  • Warehouse
  • Factory
  • Prefab Building

By Performance

  • Fire Rated
  • Thermal Insulation
  • Acoustic

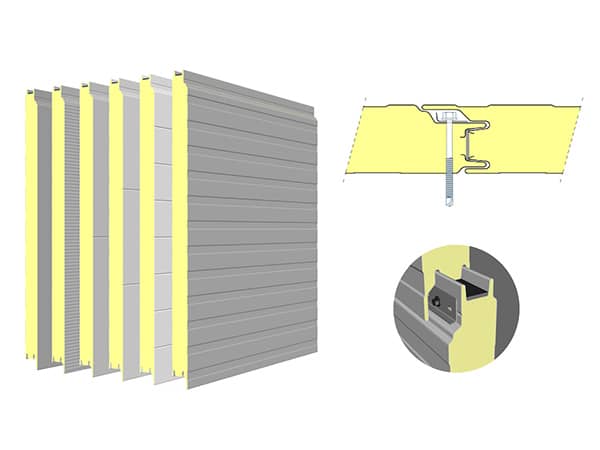

Sandwich panel installation detail

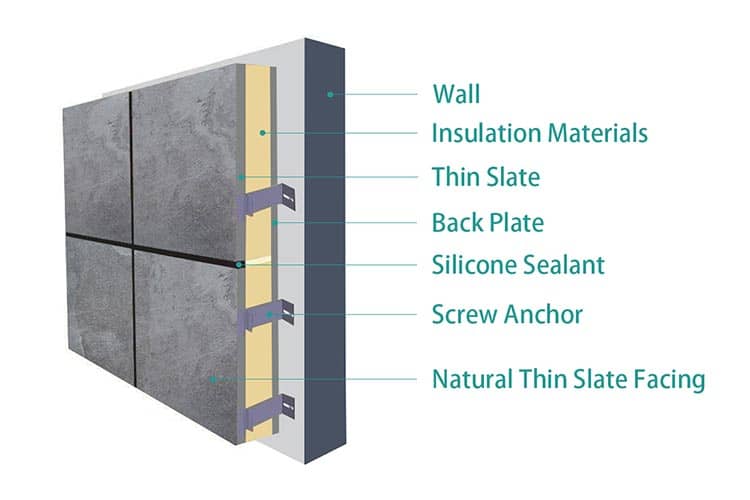

Exterior-facing insulated wall cladding panel

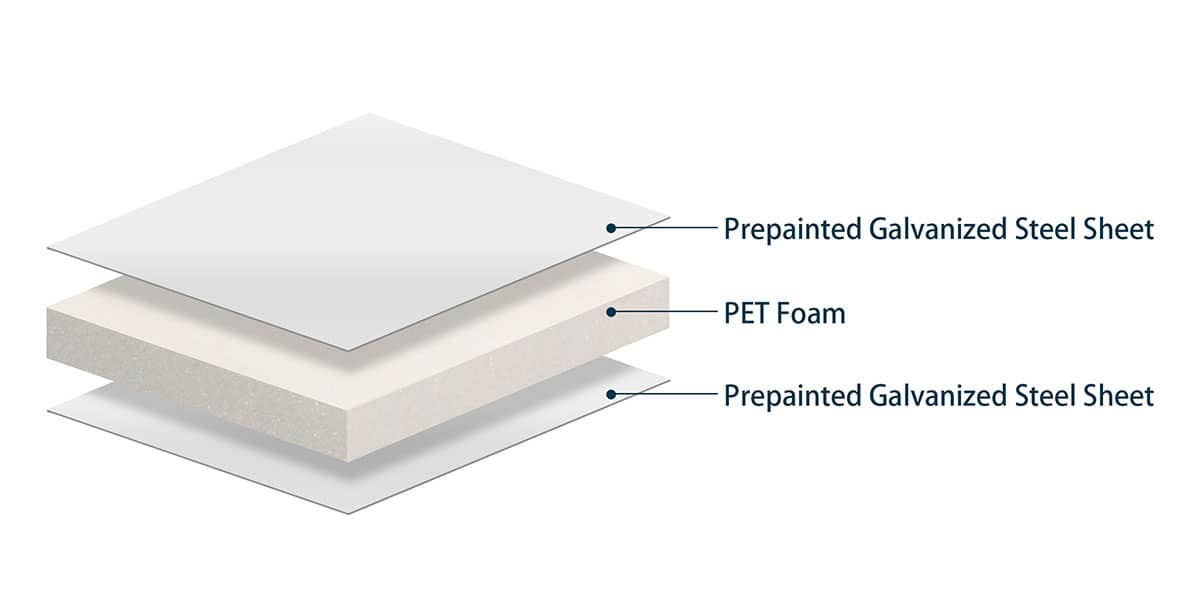

Galvanized steel facing foam sandwich panel

Sandwich Panels / Core Material / Rock Wool

Rock Wool Sandwich Panel

Non-combustible insulated wall and roof panel system for factories, warehouses, logistics buildings and fire-rated building envelopes.

Rock WoolWall & RoofFire RatedAcoustic

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Sandwich Panels
Core Material
Vertical-fiber rock wool
Core Density
100-120 kg/m3
Thickness
50 / 75 / 100 / 120 / 150 mm
Wall Effective Width
950 / 1000 / 1150 / 1180 mm
Roof Effective Width
950 / 1000 mm typical roof module
Fire Rating
Class A / A2 option, confirmed by project code
Profile Options
Flat / micro-rib wall profile; trapezoidal / standing seam roof profile
Request Quote for This ProductSend Drawing for Spec ReviewView Product Details

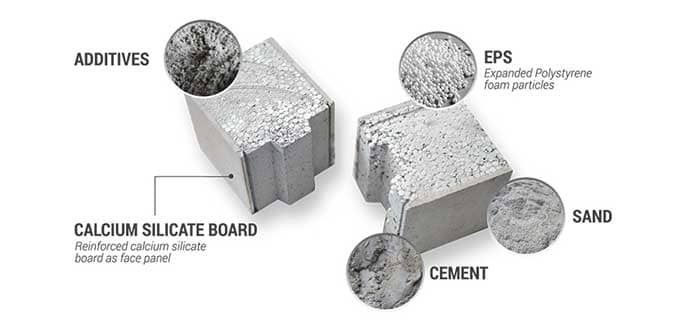

EPS wall panel for lightweight building partitions

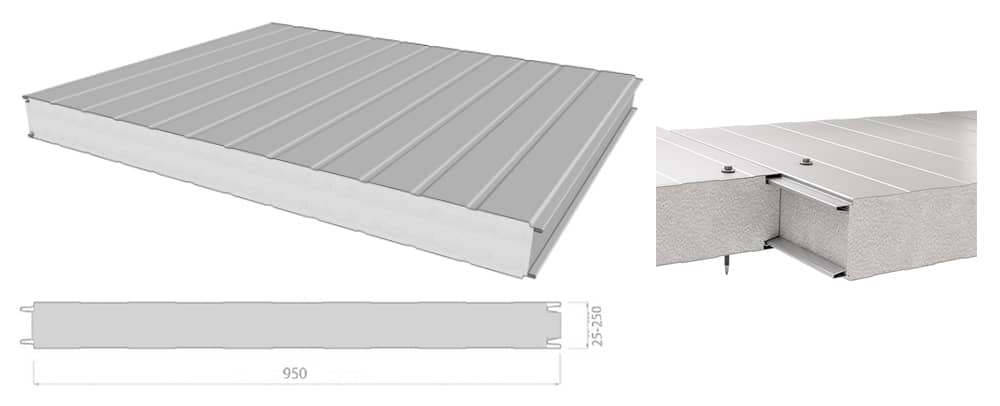

EPS sandwich panels stacked for construction use
EPS insulated panel building application

Sandwich Panels / Core Material / EPS

EPS Sandwich Panel

Economical lightweight wall and roof panel option for prefab buildings, site facilities, sheds, warehouses and budget envelope systems.

EPSWall & RoofEconomicalPrefab

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Sandwich Panels
Core Material
Expanded polystyrene EPS
Core Density
12-20 kg/m3
Thickness
50 / 75 / 100 / 150 mm
Wall Effective Width
950 / 1000 / 1150 mm
Roof Effective Width
950 / 1000 mm typical roof module
Fire Rating
B1 / B2 self-extinguishing option
Joint / Profile
Tongue-and-groove wall joint; trapezoidal roof profile
Request Quote for This ProductSend Drawing for Spec ReviewView Product Details

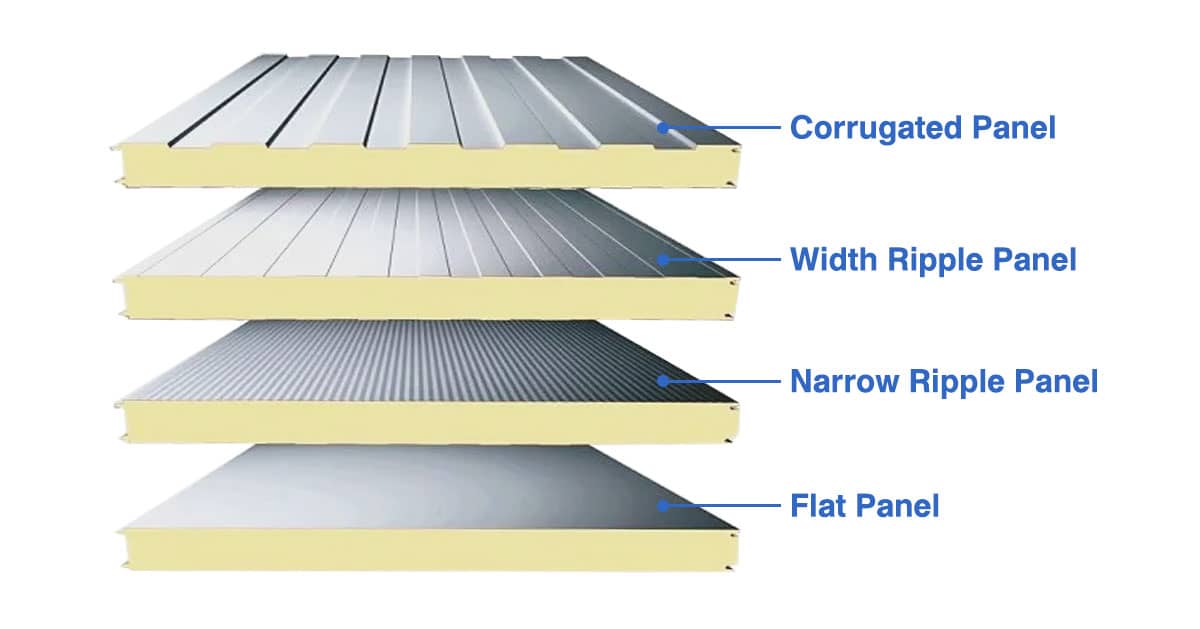

PIR sandwich panel surface texture

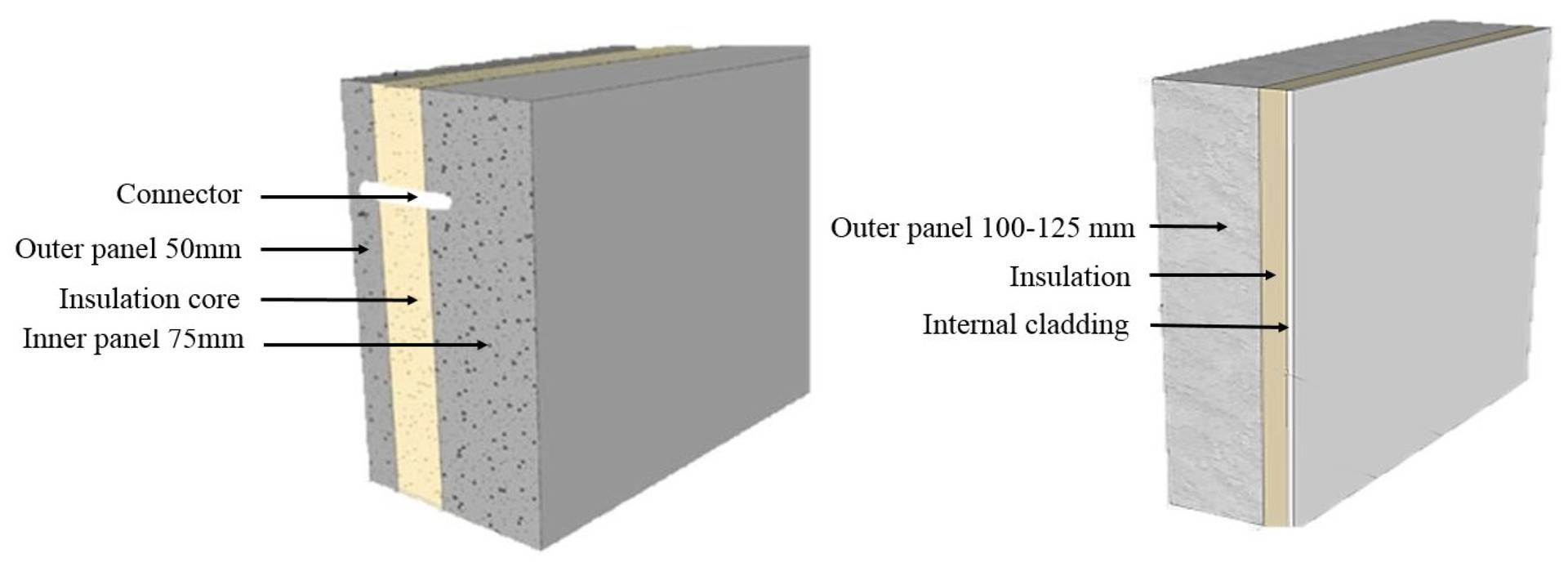

Sandwich panel layer comparison diagram

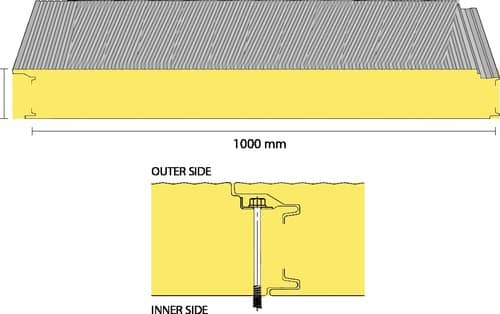

Concealed fastening detail for sandwich wall panels

Sandwich Panels / Core Material / PU/PIR

PU/PIR Sandwich Panel

High-insulation foam-core wall and roof panel for factories, warehouses and energy-focused building envelopes.

PU/PIRWall & RoofThermal InsulationIndustrial

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Sandwich Panels
Core Material
PU or PIR foam
Core Density
35-45 kg/m3
Thickness
40 / 50 / 60 / 75 / 100 / 120 / 150 / 200 mm
Wall Effective Width
950 / 1000 / 1150 mm
Roof Effective Width
950 / 1000 mm typical roof module
Thermal Conductivity
Typical 0.022-0.024 W/(m.K), depending on PU/PIR core
Joint / Profile
Tongue-and-groove / concealed screw wall option; trapezoidal roof profile
Request Quote for This ProductSend Drawing for Spec ReviewView Product Details
Freezer cold room panel system
Cam-lock connection for cold room panels

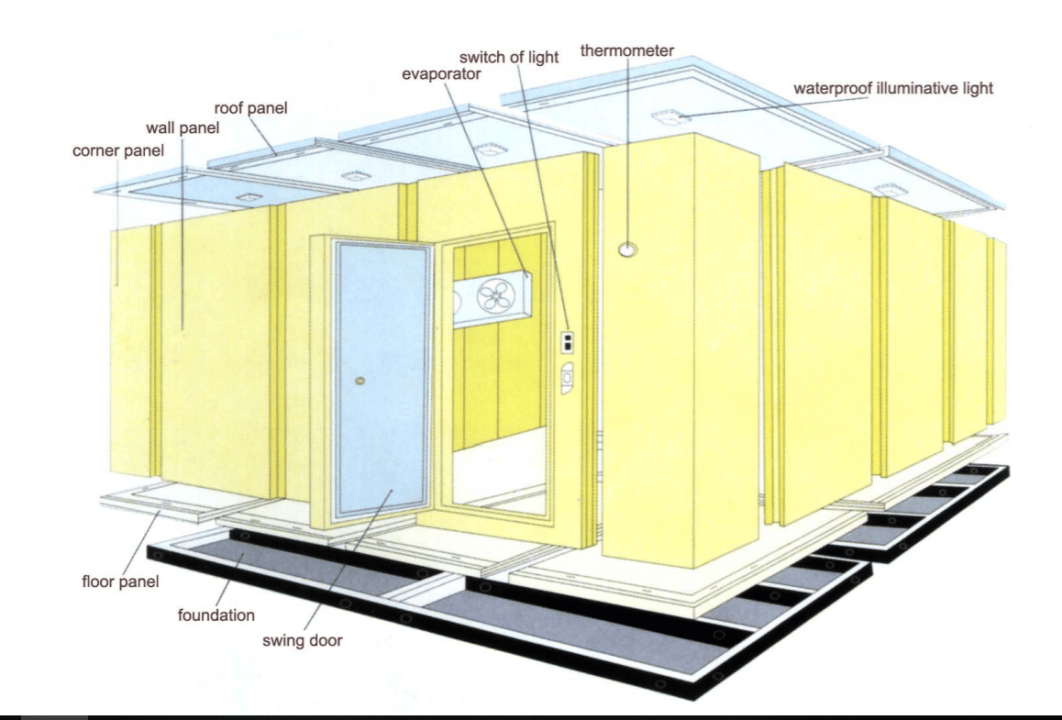

Cold room insulated panel installation

Sandwich Panels / Application / Cold Room

Cold Room Panel System

Cold storage wall, ceiling and cam-lock panel system for chill rooms, freezer rooms, food storage and cold chain logistics.

Cold RoomPU/PIRCam-lockFreezer

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Sandwich Panels
System Type
Cold room wall / ceiling / corner / door support panels
Core Material
PU / PIR foam preferred
Core Density
40-45 kg/m3
Thickness
80 / 100 / 120 / 150 / 200 mm
Temperature Range
-45 C to +20 C, confirmed by room design
Joint Options
Cam-lock / tongue-and-groove / concealed screw
Thermal Conductivity
Typical 0.022 W/(m.K) for PU/PIR
Packing
Panel marks by room zone and installation sequence
Request Quote for This ProductSend Drawing for Spec ReviewView Product Details

FAQ

FAQ before quoting sandwich panels.

Which sandwich panels should I quote first?

Start with the product that matches the building use, required core material, fire rating, thickness and installation method. If the project is unclear, send drawings and BFTPANEL will recommend the closest product in this sandwich panels range.

What data is needed for a sandwich panels quotation?

Send product type, wall or roof area, thickness, coating or finish code, cut length, quantity, destination port and any local fire or hygiene requirement.

Can BFTPANEL support samples, QC files and export packing?

Yes. The export team can arrange samples, product files, packing labels, loading photos and available QC or certification documents before shipment.
