Insulated cold storage wall, ceiling and cam-lock panels for cold chain, food storage and pharma warehouses.
BFTPANEL cold room panels are supplied as a selectable-core system for temperature-controlled buildings. PU/PIR is used when thermal insulation is the main priority, rock wool is selected for stricter fire codes, and EPS is available for economical storage rooms. Wall, ceiling, floor and cam-lock panel options can be matched to cold chain, food, agricultural and pharmaceutical storage requirements.
Core: PU / PIR / Rock Wool / EPS (selectable)

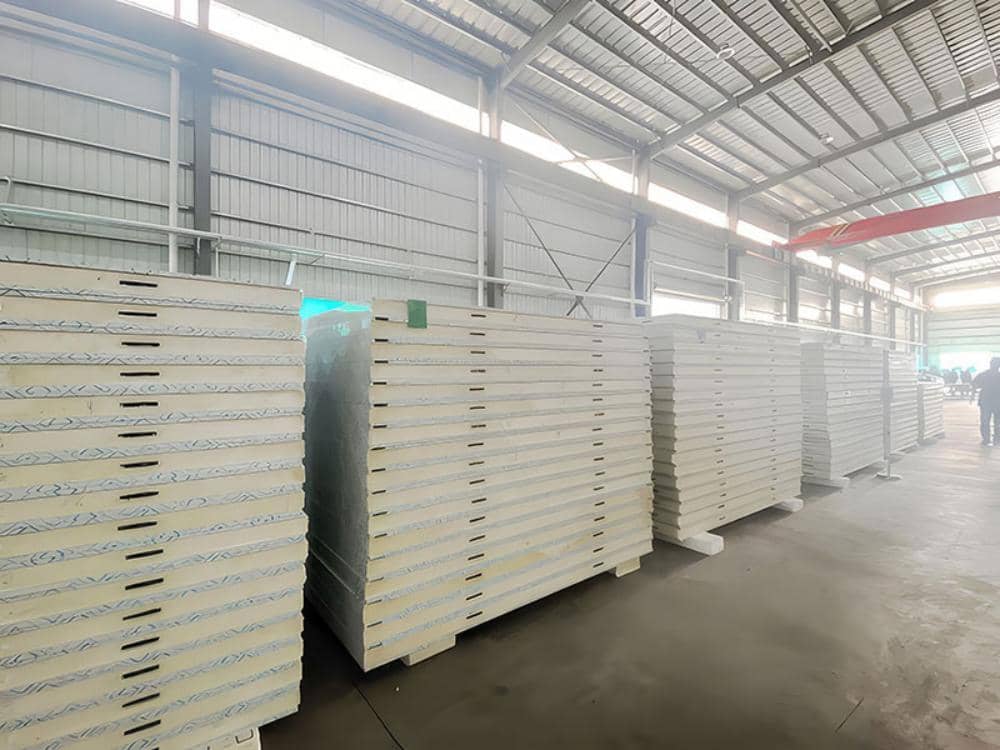

A cold room panel is an insulated sandwich panel used to build temperature-controlled rooms for chillers, freezers, food storage, agricultural warehouses and pharmaceutical cold chain buildings. BFTPANEL supplies cold room wall, ceiling, floor, corner and door-support panels with PU/PIR, rock wool or EPS core options. Buyers usually compare panel thickness, room temperature, core density, thermal conductivity, joint type, cam-lock requirement, steel coating and room-zone packing. PU/PIR is normally chosen when insulation performance is the priority, rock wool is reviewed when fire requirements are stricter, and EPS may fit economical storage rooms where local code allows it. For a faster quotation, send the room size, target temperature, panel thickness, door quantity, floor requirement, drawings if available and destination port. BFTPANEL then checks the panel system, sealing method, packing marks and export price. This keeps room planning, accessories and shipment groups aligned.

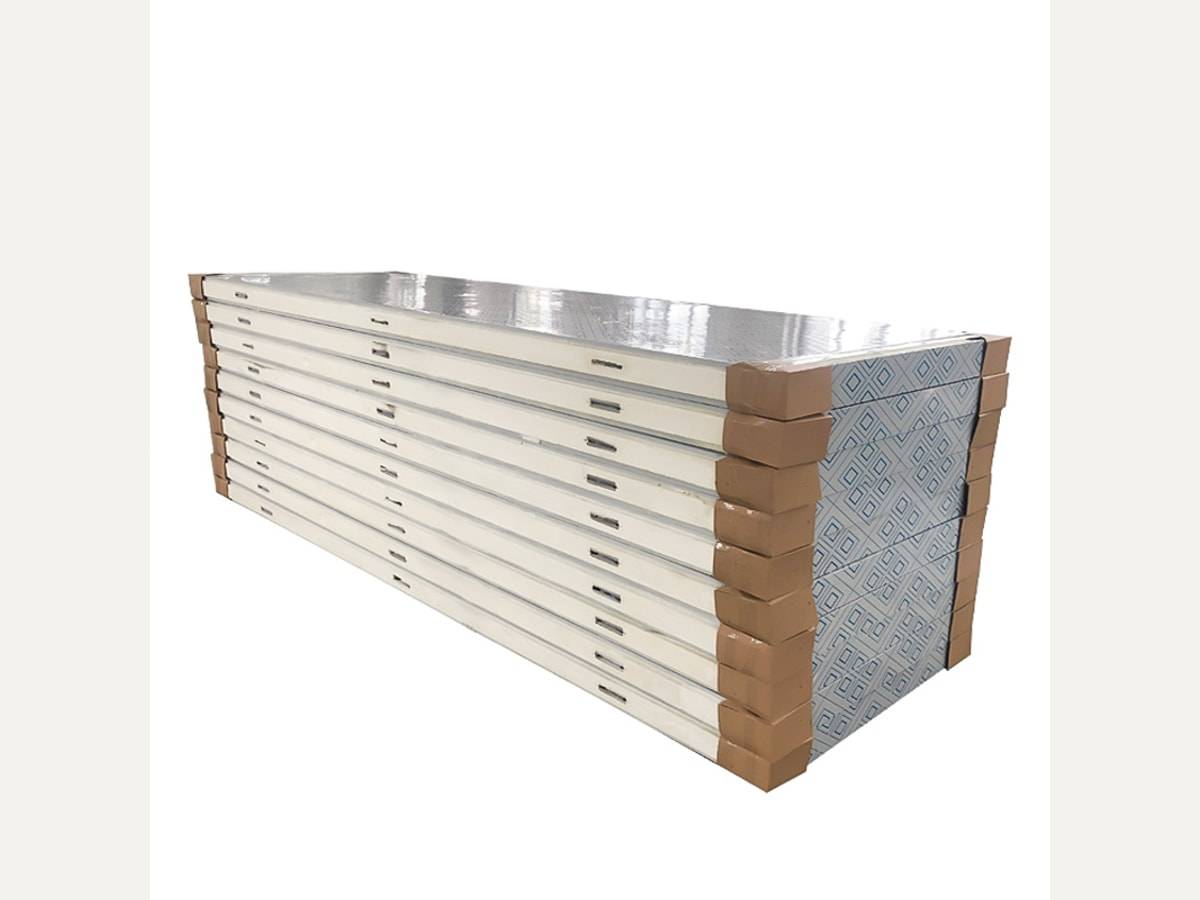

Main cold room envelope panel for insulated walls and ceilings, with low thermal conductivity and washable steel faces.

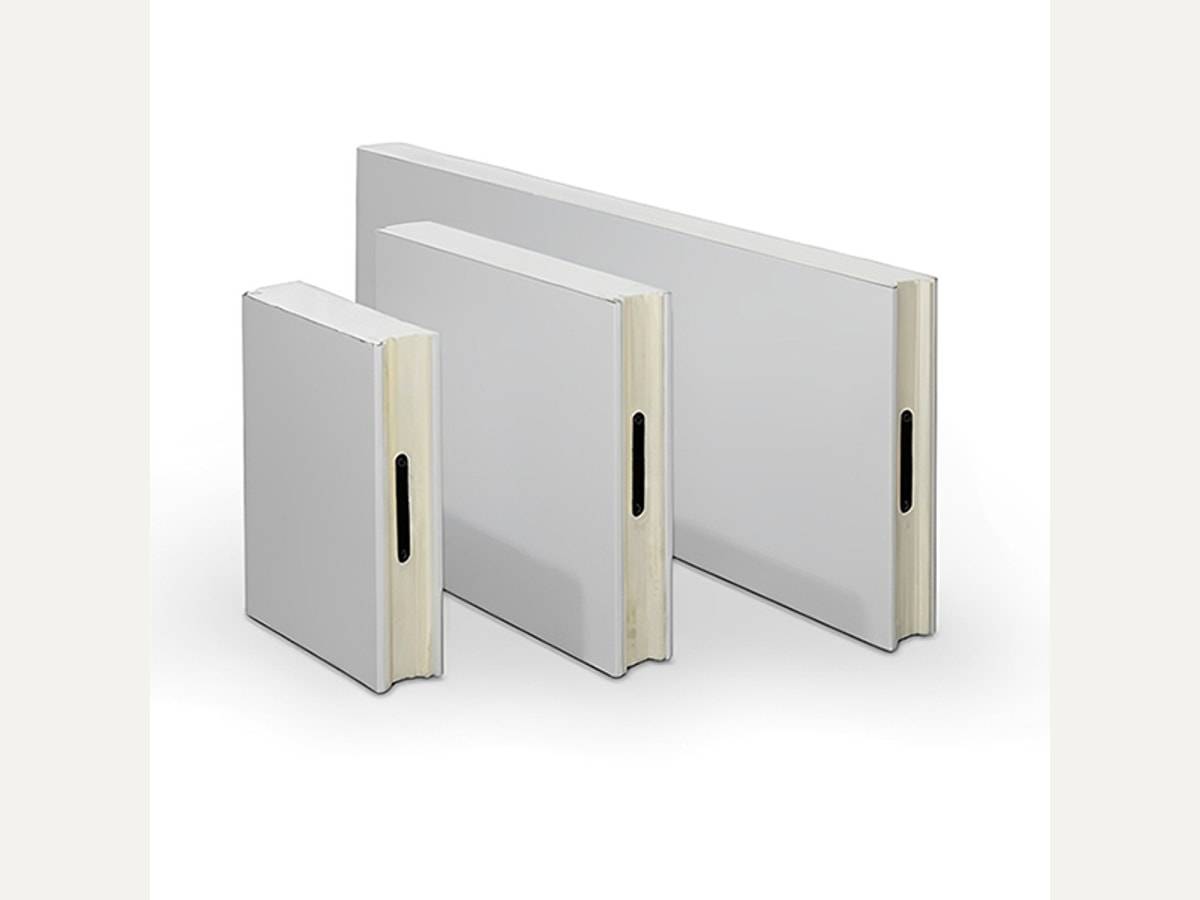

Fast assembly and stronger room sealing for modular cold rooms and prefabricated freezer boxes.

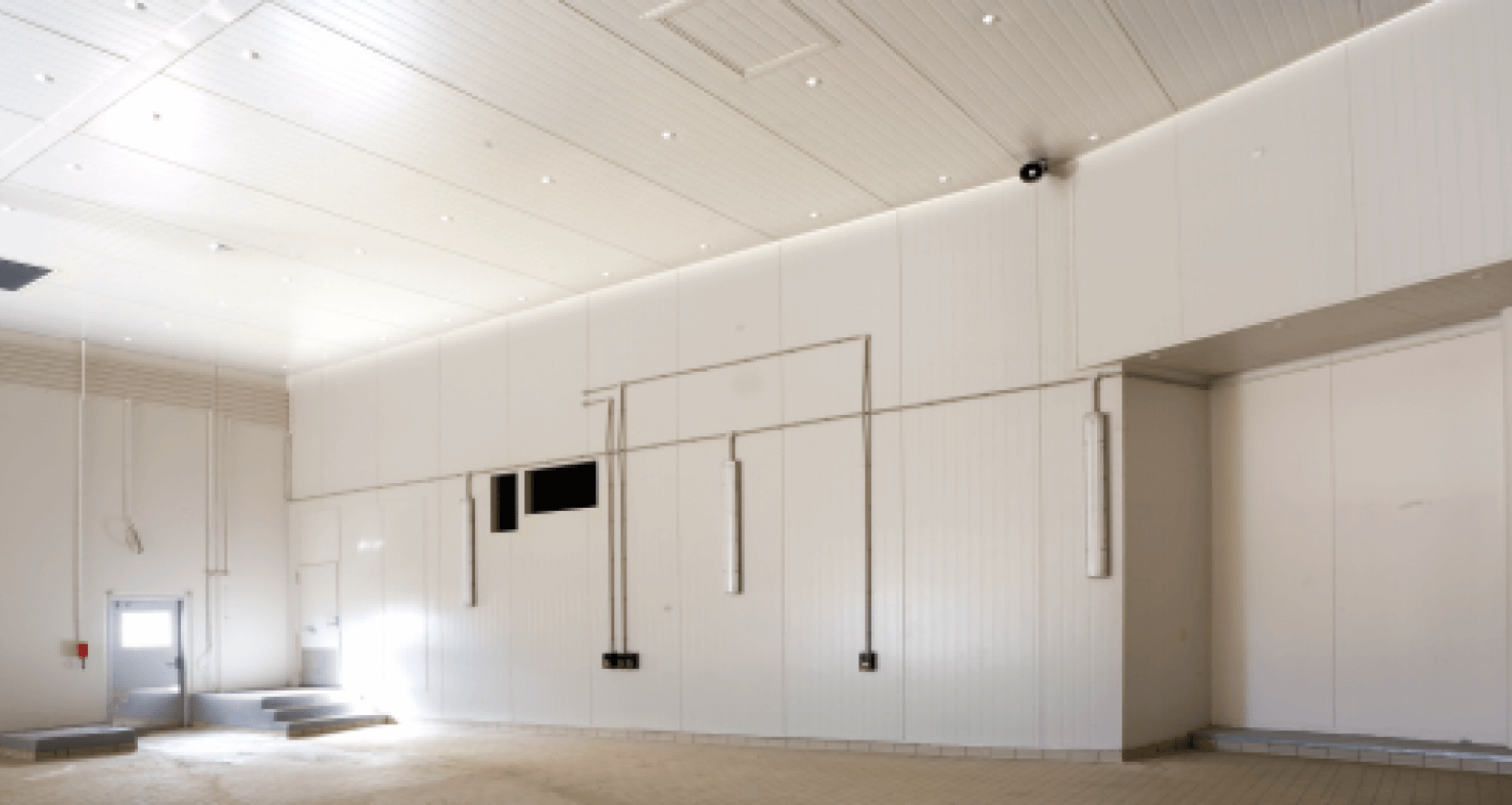

Support panels and details for floor edges, corners, doors and room transitions where sealing and load planning matter.
Product Details
Wall, ceiling, floor and corner details can be matched for rooms from chilled storage to freezer operation.
PU/PIR for insulation, rock wool for fire rating, EPS for economy. The quotation can compare core options side by side.
Modular cam-lock hardware supports faster installation and repeat cold room projects.
Tongue-and-groove or cam-lock joints, sealant planning and trims help reduce leakage at panel joints.
Panel marks, packing lists and loading photos can follow wall, ceiling and room-number groups.
Steel coatings, panel thickness and joint systems can be reviewed for food, agricultural and medical storage.
Specifications
Standard factory parameters. Custom thickness, density and color are available after specification review. Confirm during quotation.
| Thickness | 50 / 75 / 100 / 120 / 150 / 200 mm |
|---|---|
| PU/PIR density | 40-45 kg/m³ |
| Temperature range | -45°C to +20°C, project-dependent |
| Thermal conductivity | ≤ 0.022 W/(m·K) for PU/PIR |
| Steel skin | Pre-painted galvanized steel, 0.4-0.6 mm |
| Joint | Cam-lock / tongue-and-groove / concealed screw |
| Panel types | Wall / ceiling / floor / corner / door support panels |
| Core options | PU / PIR / rock wool / EPS |
Applications
Meat, seafood, dairy, frozen food, fruit and vegetable cold storage.
Controlled storage for produce, flowers, seeds and farm distribution centers.
Medical warehouse rooms, vaccine storage and low-temperature logistics.
Regional freezer warehouses, sorting rooms and temperature-controlled loading areas.
FAQ
Use these answers to prepare a faster quotation request with drawings, quantities and specification notes.
Choose by application, core material, thickness, fire rating, surface finish and installation method. For cold room panel projects, BFTPANEL reviews drawings and recommends the closest specification before quotation.
Send building use, wall or roof area, thickness, panel length, coating or finish requirement, accessory list, destination port and any local fire, hygiene or temperature requirement.
Yes. The export team can arrange A4 samples, specification files, available certificates, packing labels, loading photos and shipment records according to the order.
