Controlled Environment Wall and Ceiling Systems

Cleanroom Panel Supplier

BFTPANEL supplies cleanroom wall, ceiling and envelope panel systems for pharmaceutical, electronics, food, hospital and laboratory projects.

Handmade rock wool cleanroom panel sample

Selection Guide

Choose cleanroom panels by project requirement

A cleanroom panel is a modular wall or ceiling panel designed for controlled environments where hygiene, flatness, cleanability and fire performance are important. BFTPANEL supplies cleanroom panel systems for pharmaceutical plants, food processing rooms, hospitals, laboratories, electronics workshops and GMP or HACCP projects. Buyers usually compare the manufacturing method, core material, surface coating, joint profile, thickness, ceiling load requirement and accessory package. Handmade panels are often used when the project needs stronger rigidity or special cores, while machine-made panels support larger projects with repeat dimensions and faster lead time. Rock wool and MgO systems are selected for fire performance, and PU/PIR or honeycomb options may be reviewed for weight, insulation or ceiling requirements. For quotation, send the cleanroom class, room layout, panel thickness, door and window schedule, ceiling needs and destination port. This keeps supplier approval, room planning and material takeoff aligned.

By Manufacturing

  • Handmade
  • Machine-made

By Core Material

  • Rock Wool
  • MGO Rock Wool
  • Aluminum Honeycomb
  • Paper Honeycomb
  • PU/PIR

By System Position

  • Wall Panel
  • Ceiling Panel
  • Walkable Ceiling
  • Return Air Wall

By Industry

  • Pharmaceutical
  • Electronics
  • Food
  • Laboratory

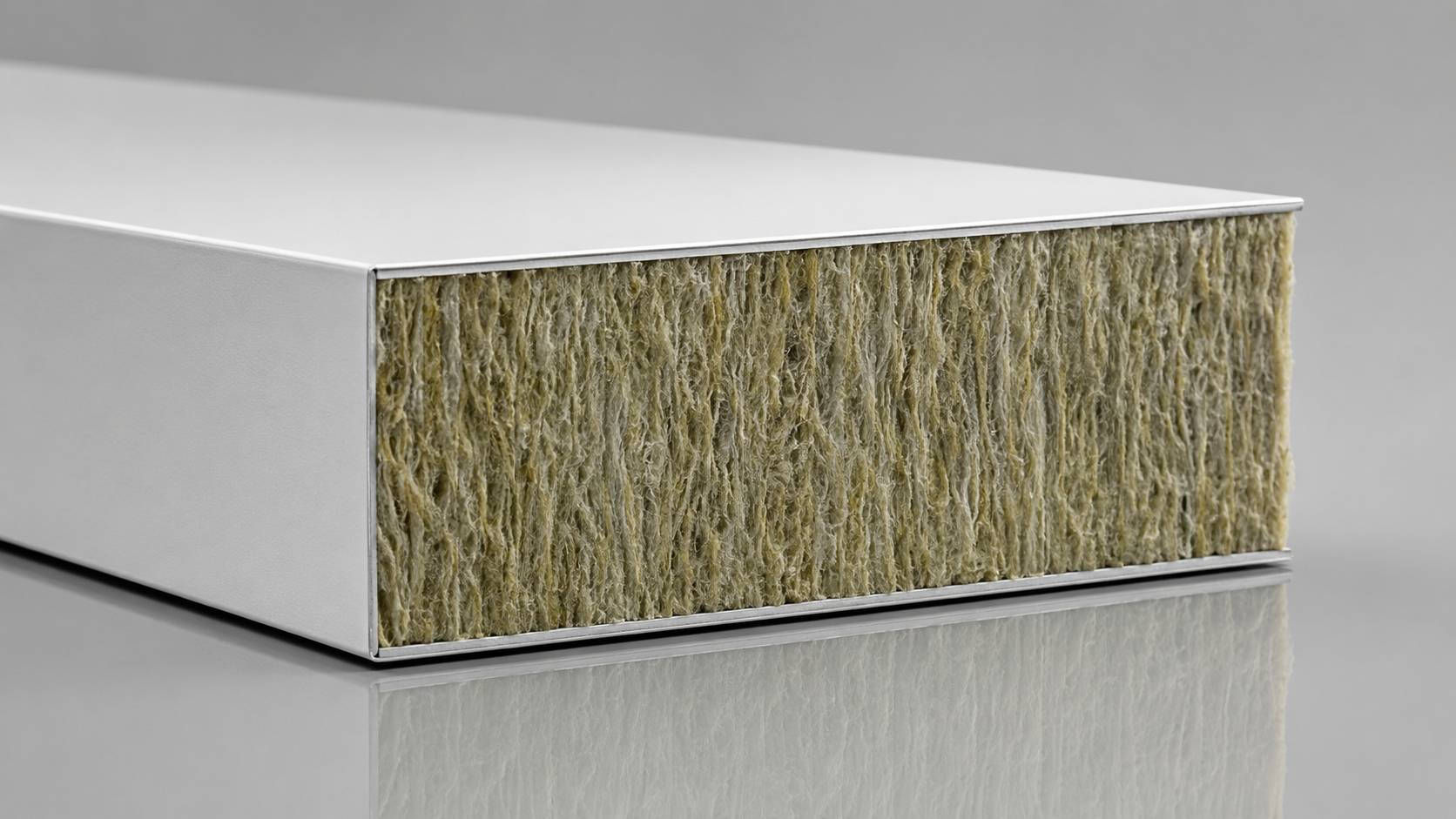

Handmade rock wool cleanroom wall panel

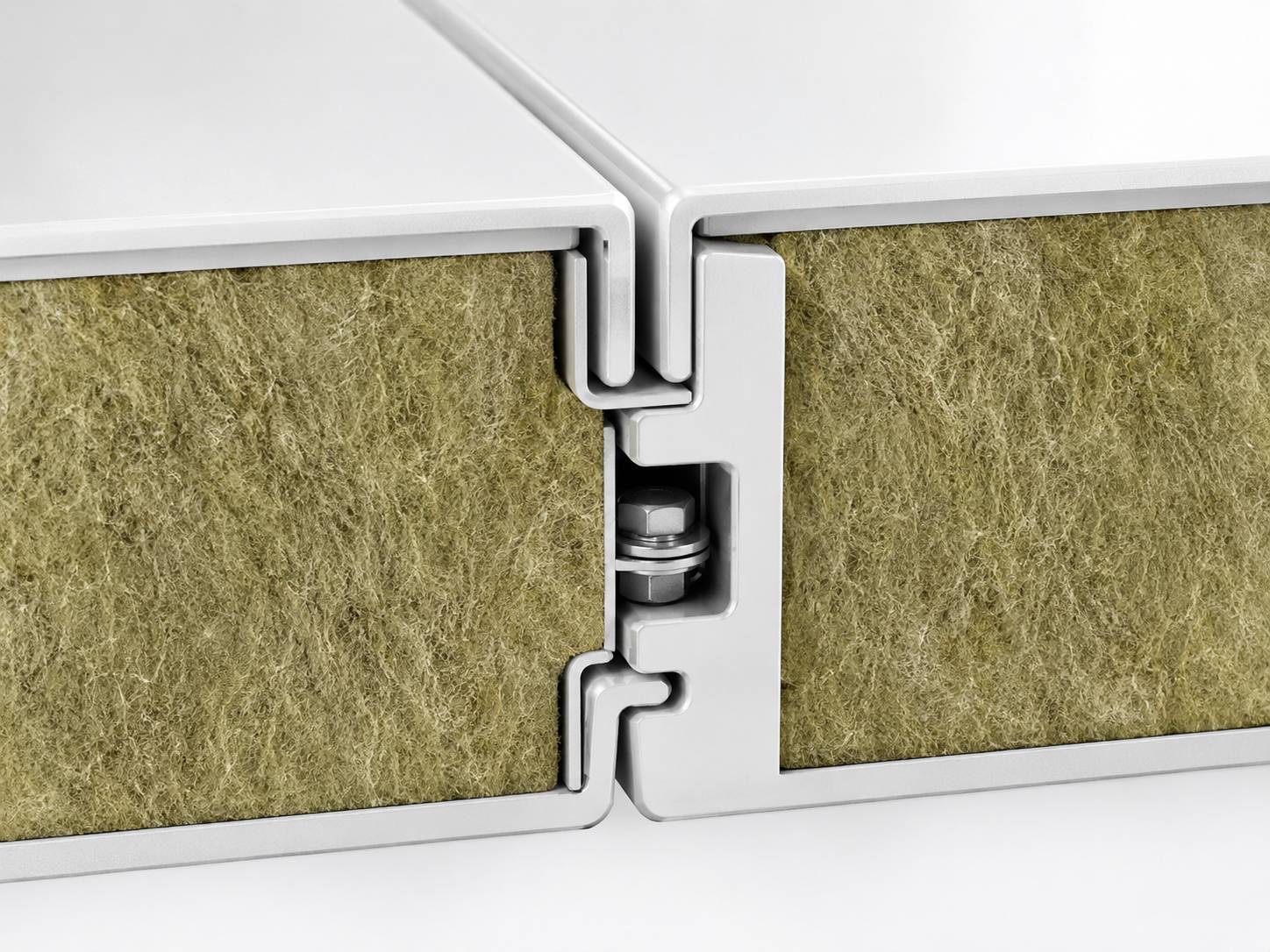

Cleanroom panel sample

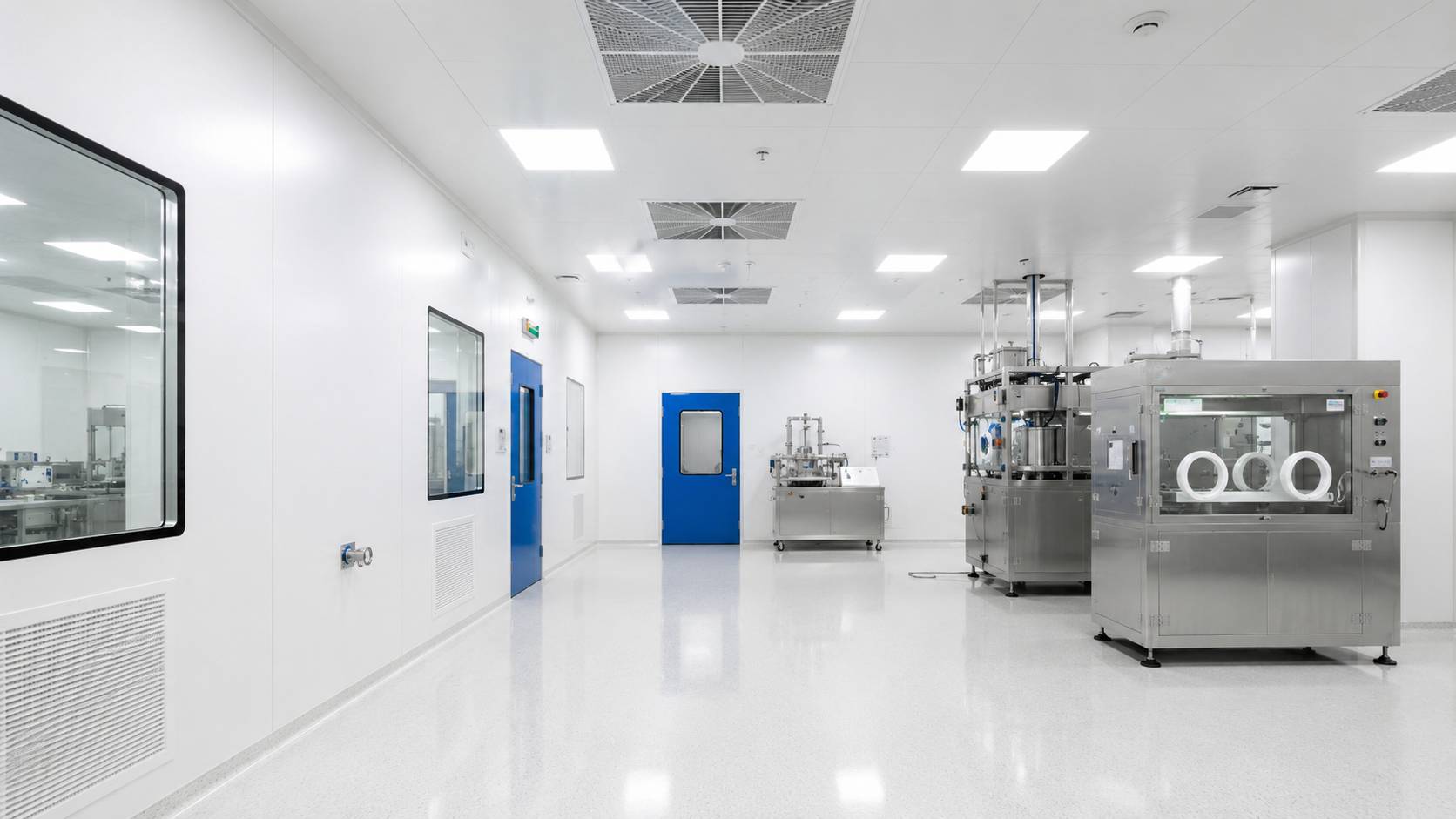

Cleanroom panel production sample

Cleanroom Panels / Manufacturing / Handmade

Handmade Rock Wool Cleanroom Wall Panel

Fire-rated cleanroom wall panel with high rigidity and smooth washable steel surfaces.

HandmadeRock WoolWall PanelGMP

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Cleanroom Panels
Manufacturing
Handmade panel assembly
Core Material
Rock wool
Thickness
50 / 75 / 100 mm
Standard Width
950 / 980 / 1150 / 1180 mm
Surface
Cleanroom white pre-painted galvanized steel
Steel Skin
0.4-0.6 mm typical range
Joint
Flush joint / tongue-and-groove / cleanroom profile system

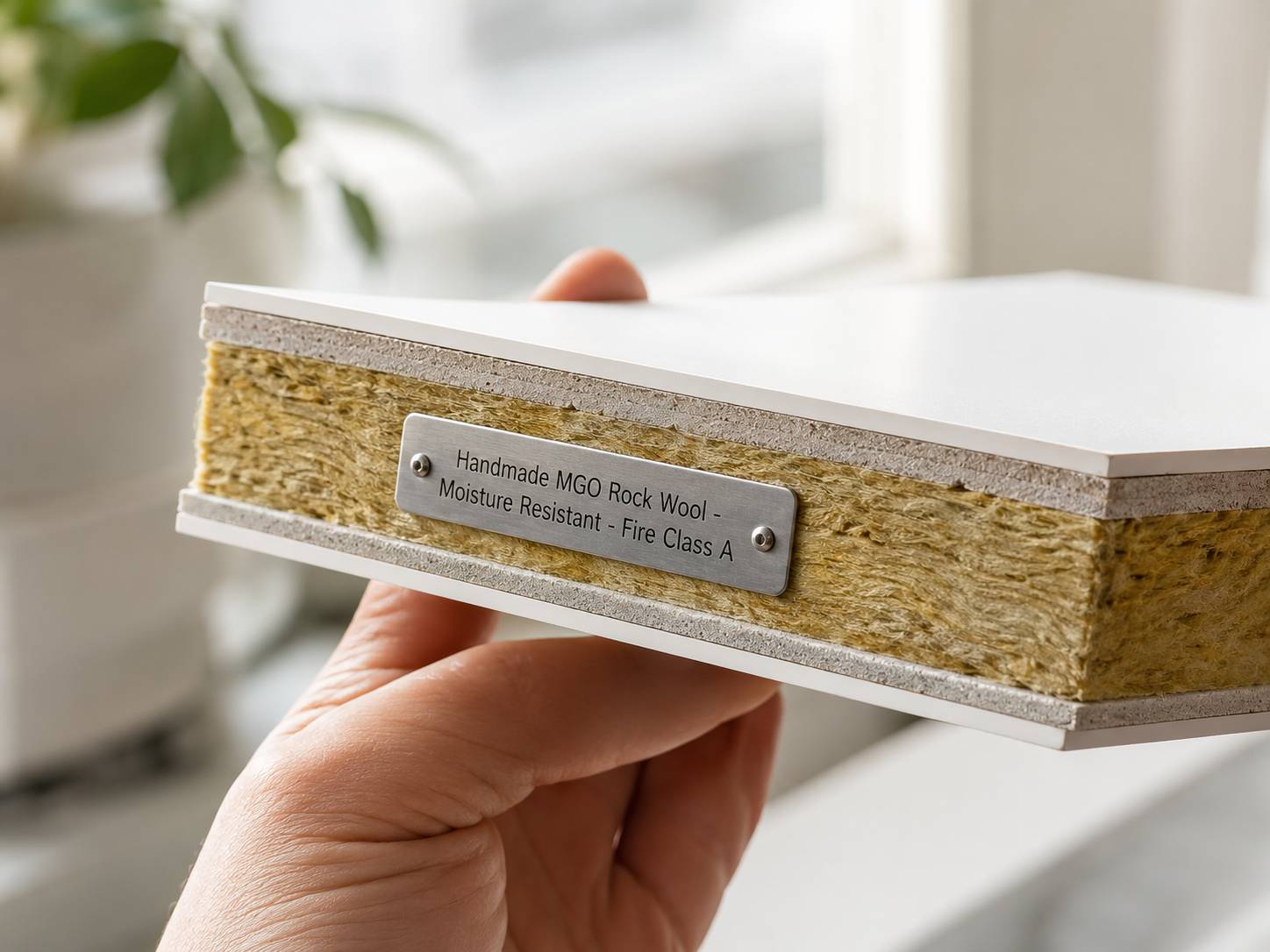

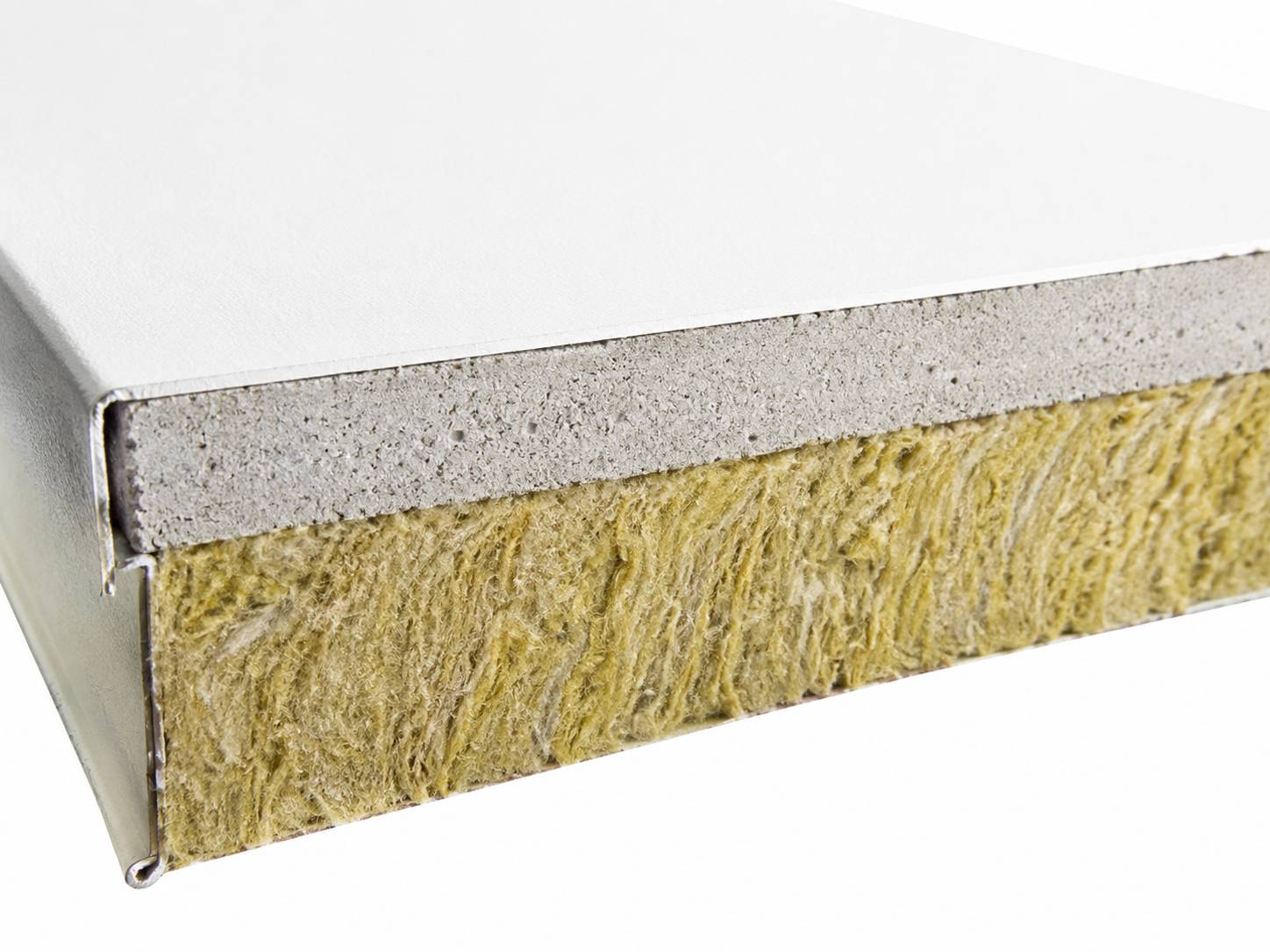

MGO rock wool cleanroom panel

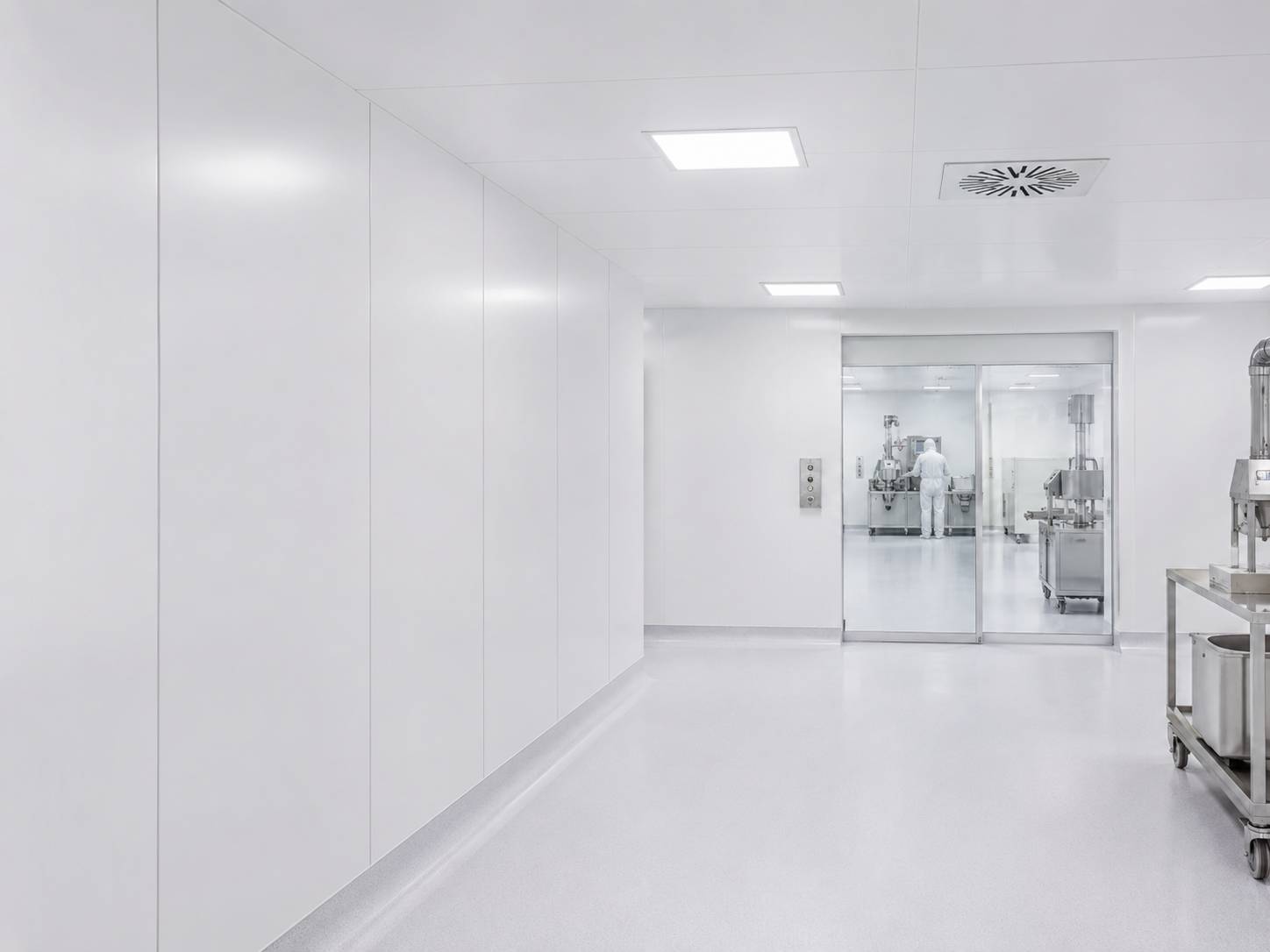

Handmade cleanroom panel core
Cleanroom panel surface

Cleanroom Panels / Core Material / MGO Rock Wool

Handmade MGO Rock Wool Cleanroom Panel

Cleanroom panel with MgO board and rock wool core for fire, moisture and dimensional stability requirements.

HandmadeMGORock WoolMoisture Resistant

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Cleanroom Panels
Manufacturing
Handmade panel assembly
Core Material
MgO board + rock wool composite
Thickness
50 / 75 / 100 mm
Standard Width
950 / 980 / 1150 / 1180 mm
Surface
Cleanroom white steel / HPL option by project
Fire Rating
Class A core system, confirmed by project code
Best For
Pharmaceutical, hospital, lab and damp clean zones

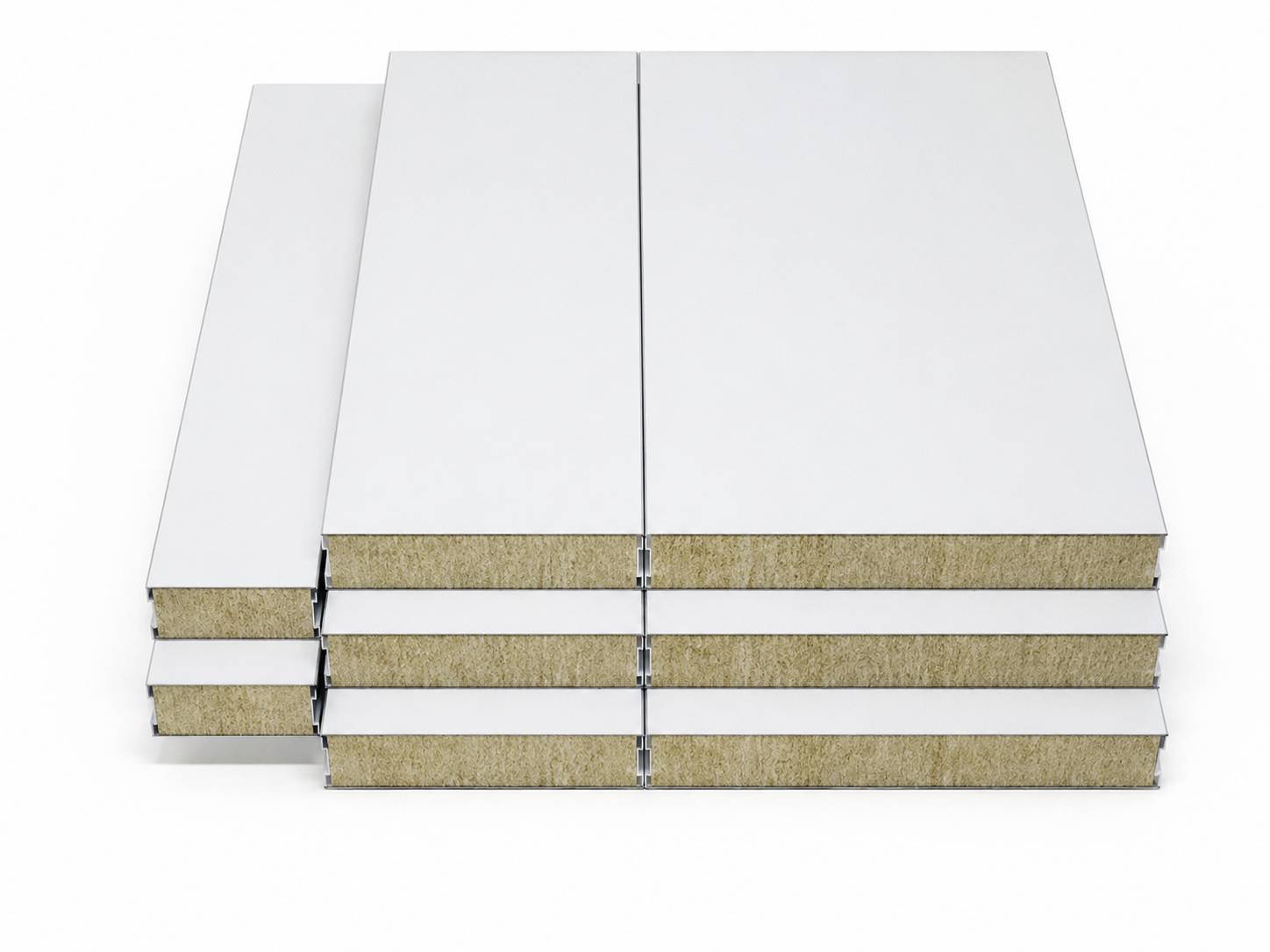

Machine-made rock wool cleanroom panel

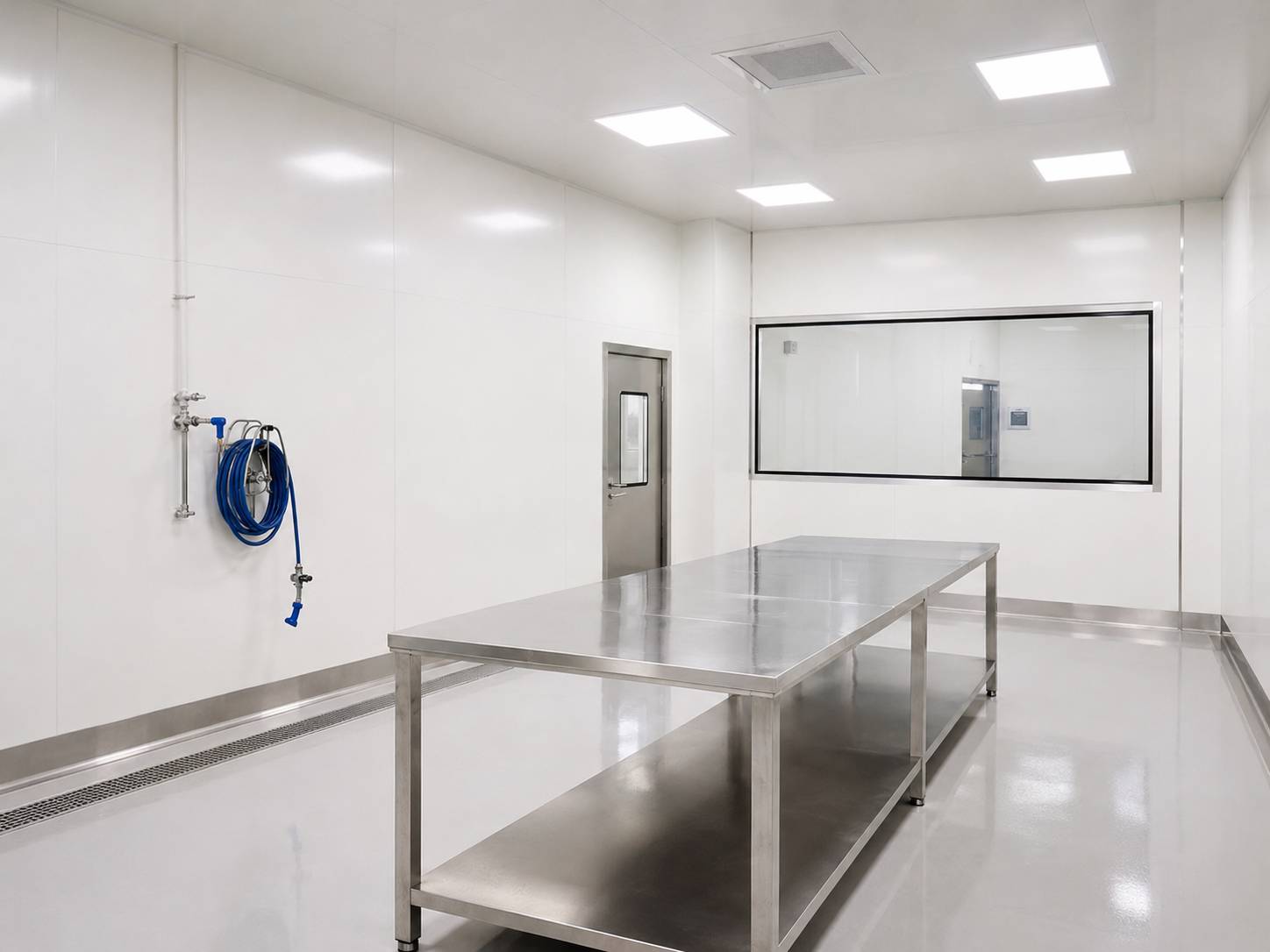

Cleanroom panel line sample

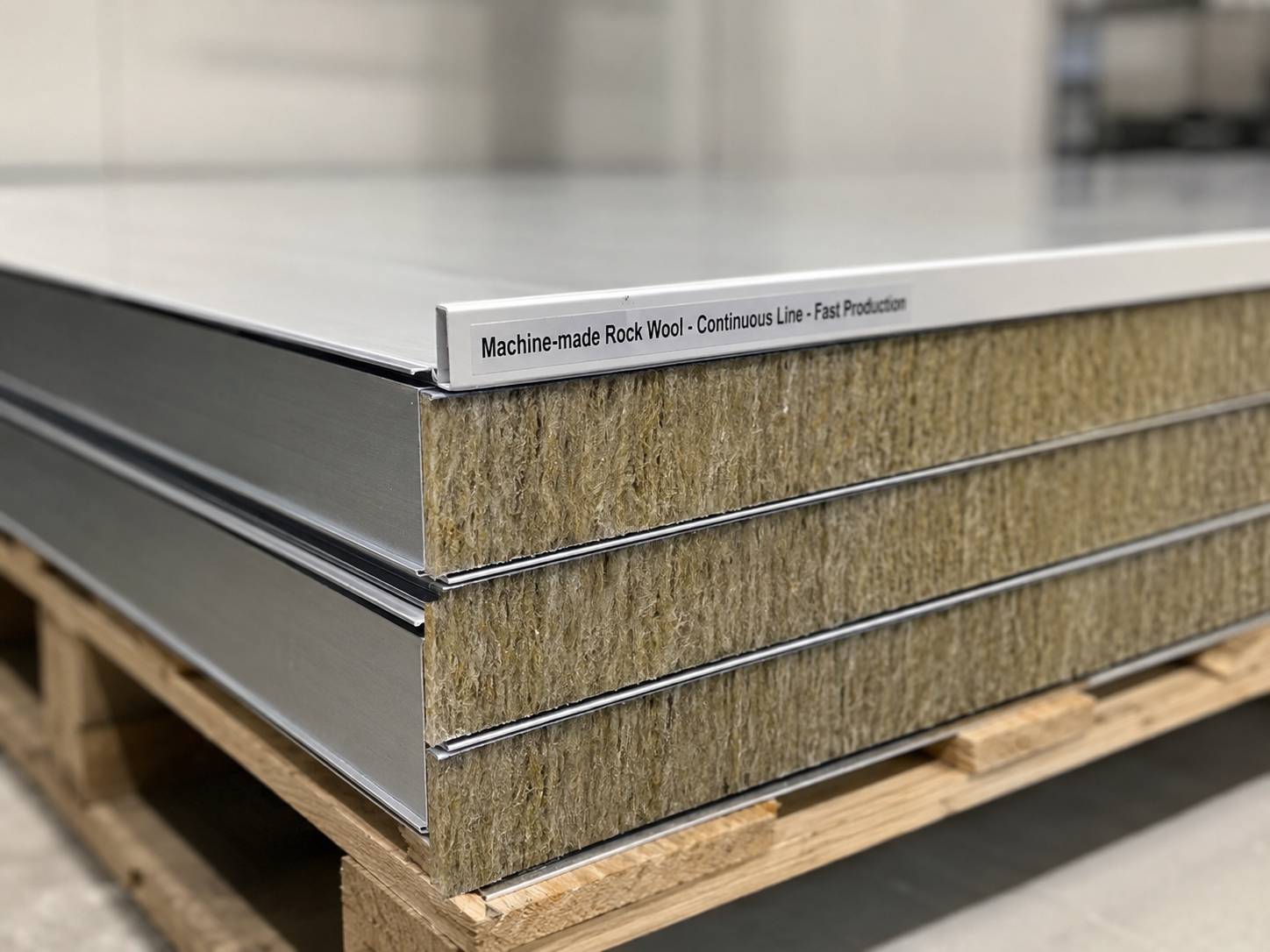

Cleanroom panel production line

Cleanroom Panels / Manufacturing / Machine-made

Machine-made Rock Wool Cleanroom Panel

Continuous-line cleanroom wall panel for larger projects that need repeat tolerance and faster production.

Machine-madeRock WoolWall PanelFast Production

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Cleanroom Panels
Manufacturing
Machine-made continuous production
Core Material
Rock wool
Thickness
50 / 75 / 100 mm
Standard Width
950 / 1150 / 1180 mm
Surface
Pre-painted galvanized steel, cleanroom white
Joint
Flush joint / cleanroom aluminum profile system
Best For
Food, beverage, electronics and repeat cleanroom projects

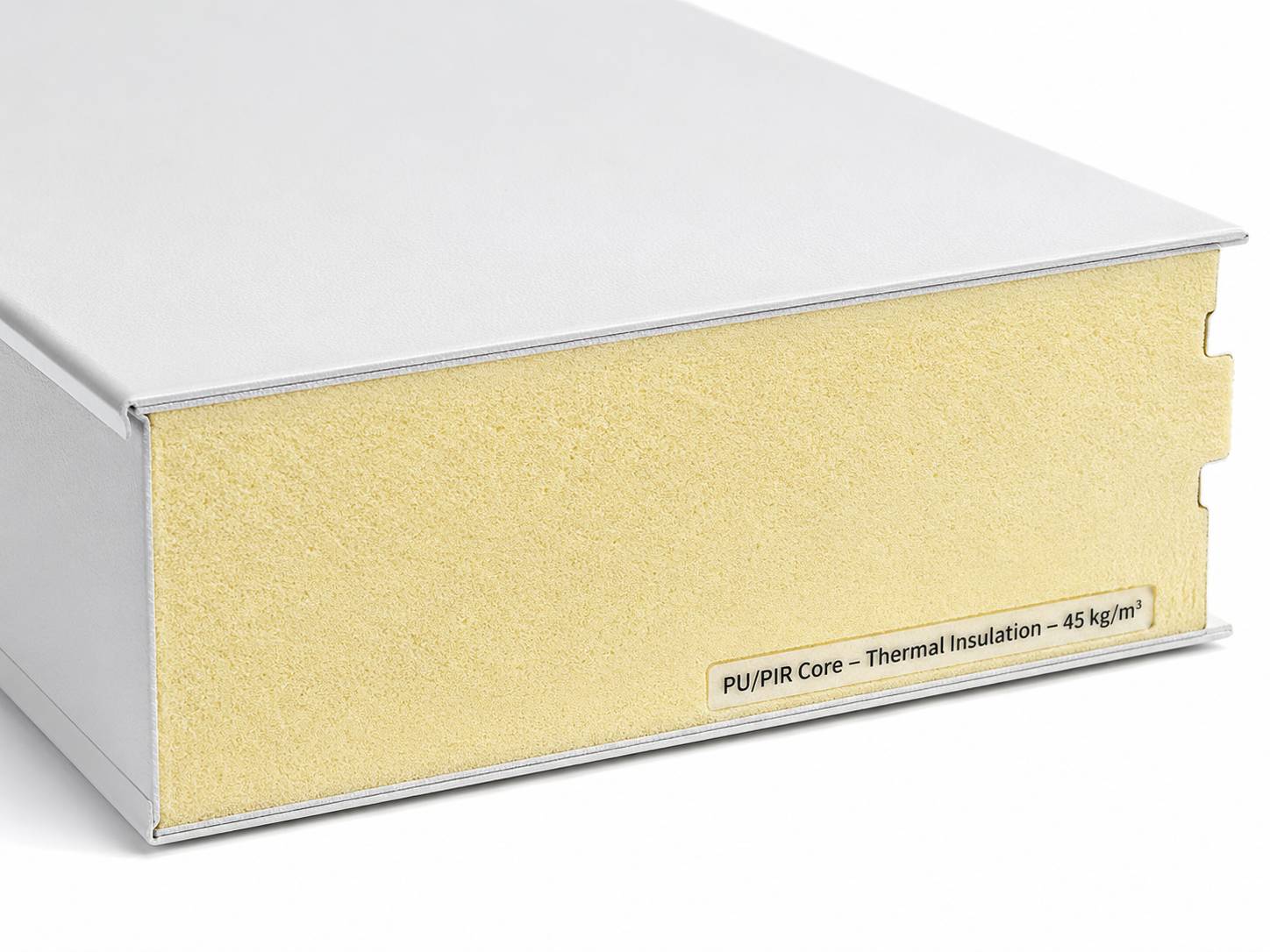

PU/PIR cleanroom panel core

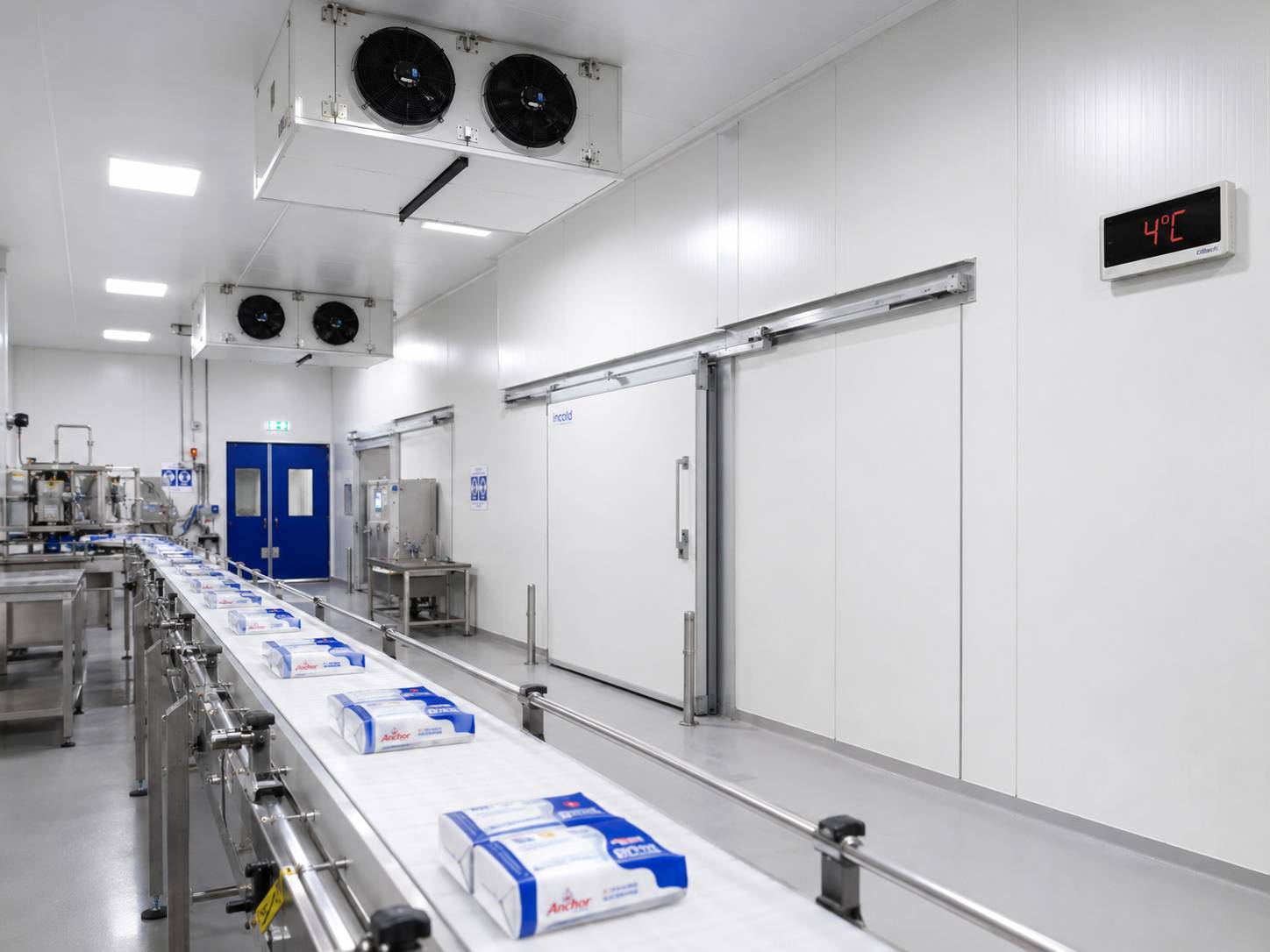

Cleanroom panel surface sample

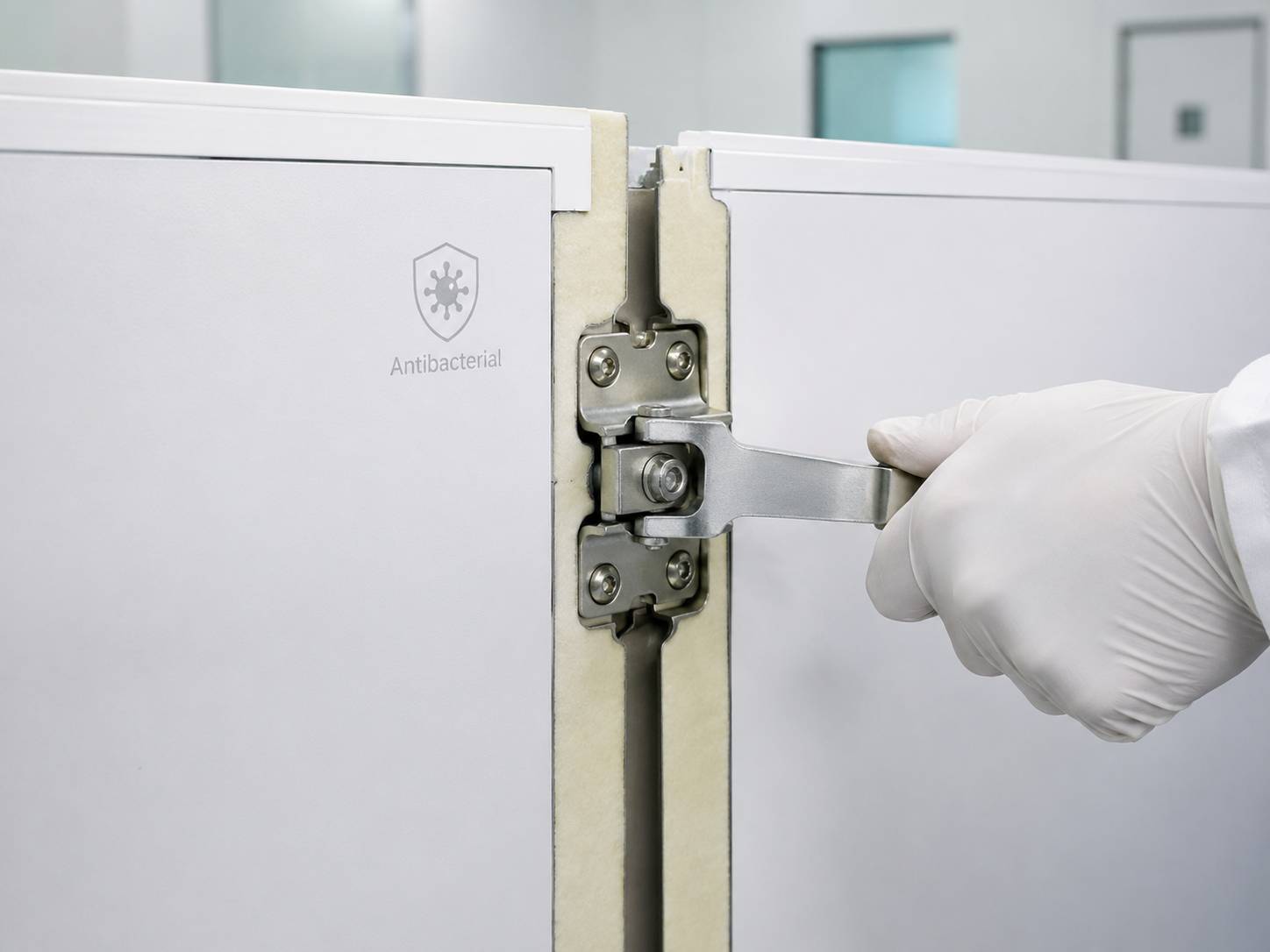

PU insulated clean zone panel

Cleanroom Panels / Core Material / PU/PIR

PU/PIR Cleanroom Panel

Cleanroom panel for projects that need controlled surfaces plus stronger thermal insulation performance.

PU/PIRThermalCleanroom WallFood

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Cleanroom Panels
Manufacturing
Handmade or machine-made, selected by room layout and quantity
Core Material
PU / PIR foam
Core Density
35-45 kg/m3 typical range
Thickness
50 / 75 / 100 mm
Surface
Cleanroom white steel / antibacterial coating option
Joint
Flush joint / cam-lock / tongue-and-groove option
Best For
Food processing, temperature-sensitive clean zones

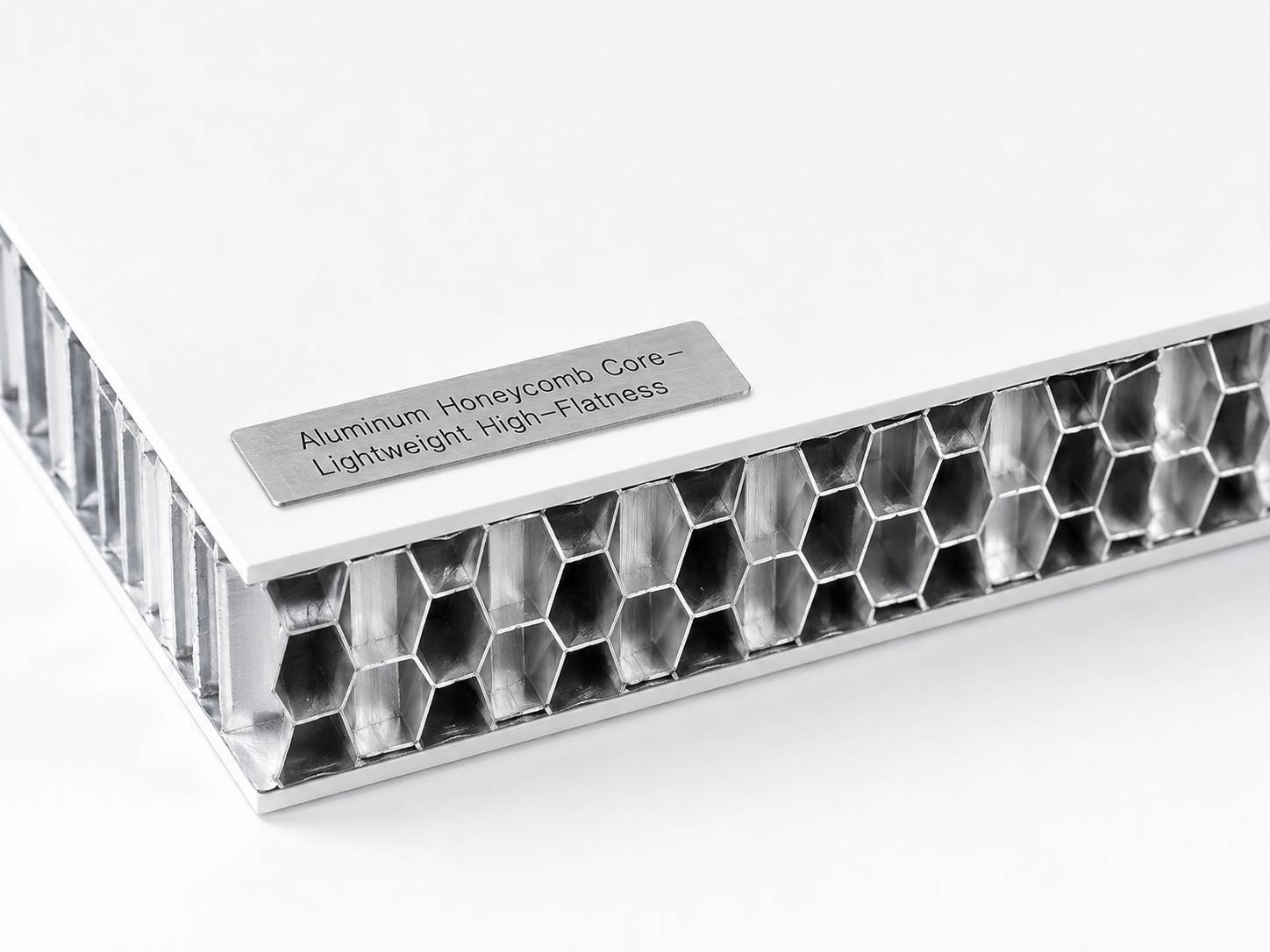

Aluminum honeycomb cleanroom panel

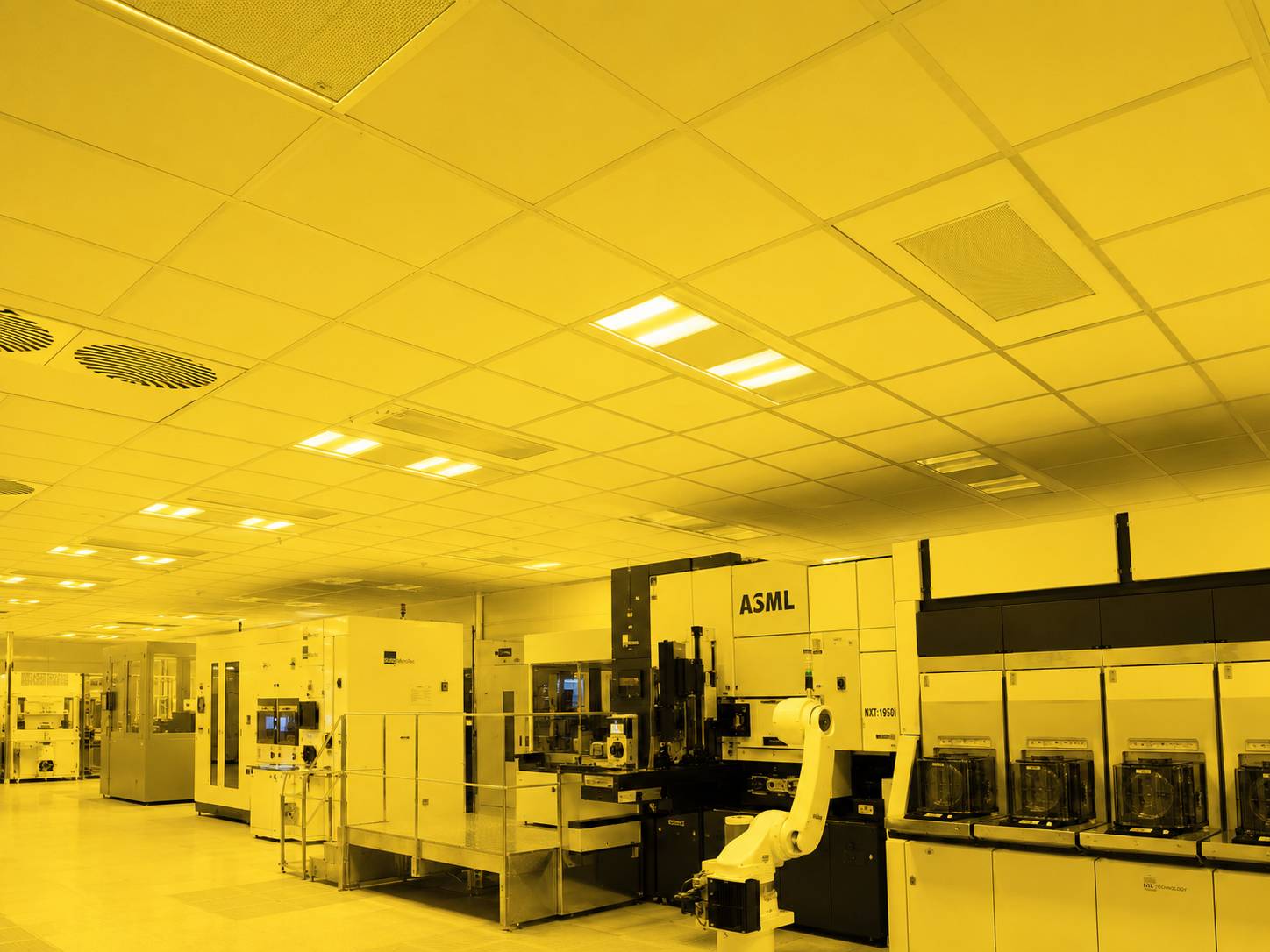

Cleanroom panel face

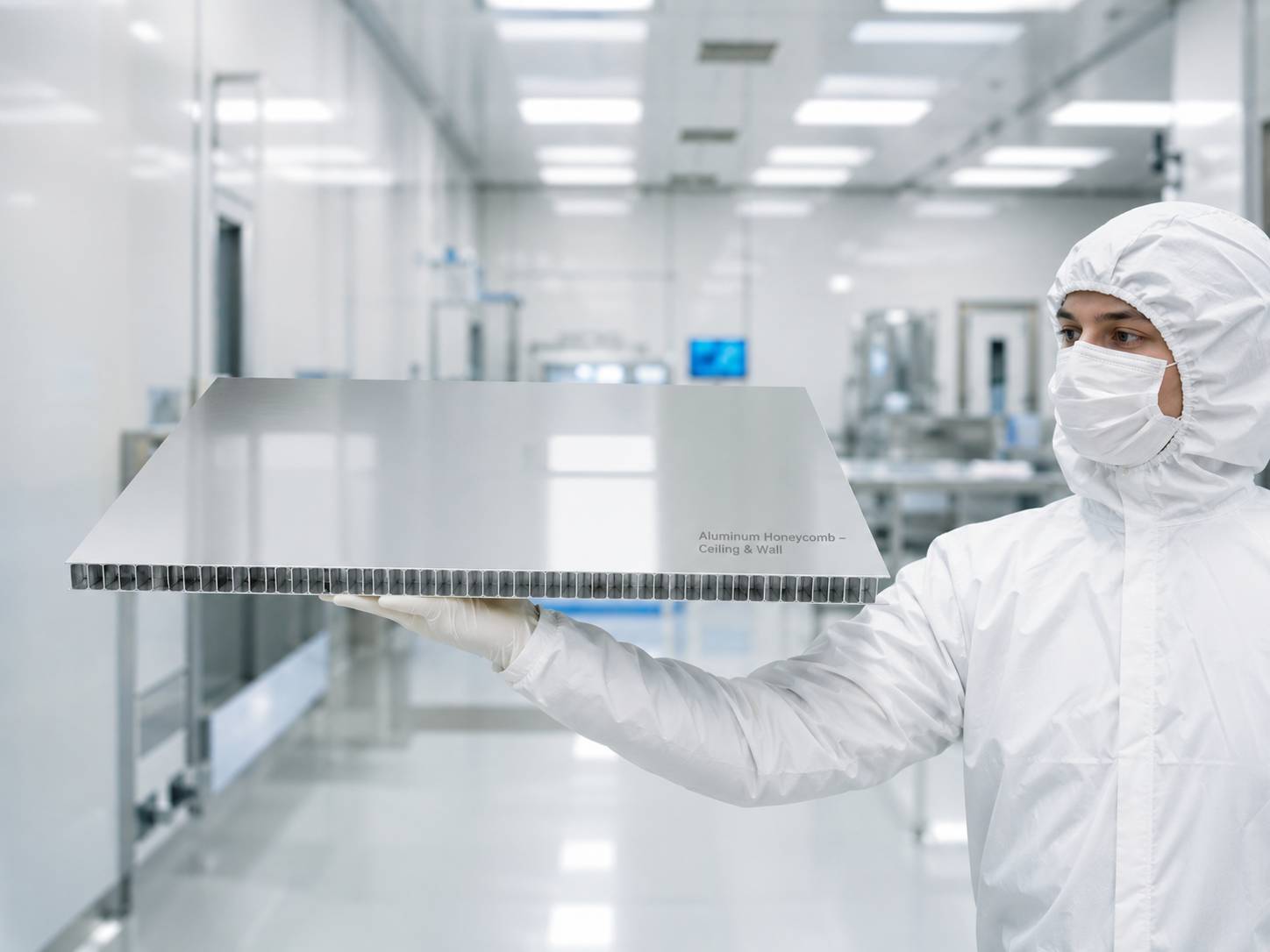

Cleanroom panel layer composition

Cleanroom Panels / Core Material / Aluminum Honeycomb

Aluminum Honeycomb Cleanroom Panel

Lightweight high-flatness cleanroom panel for ceiling, wall and precision cleanroom envelope applications.

Aluminum HoneycombLightweightHigh FlatnessCeiling

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Cleanroom Panels
Core Material
Aluminum honeycomb
Thickness
50 / 75 / 100 mm, selected by room specification
Standard Width
950 / 1150 / 1180 mm
Surface
Pre-painted steel / HPL / stainless steel option
Performance
Lightweight, high flatness, stable panel body
Position
Wall panel / ceiling panel
Best For
Electronics, optics, laboratories and precision cleanrooms

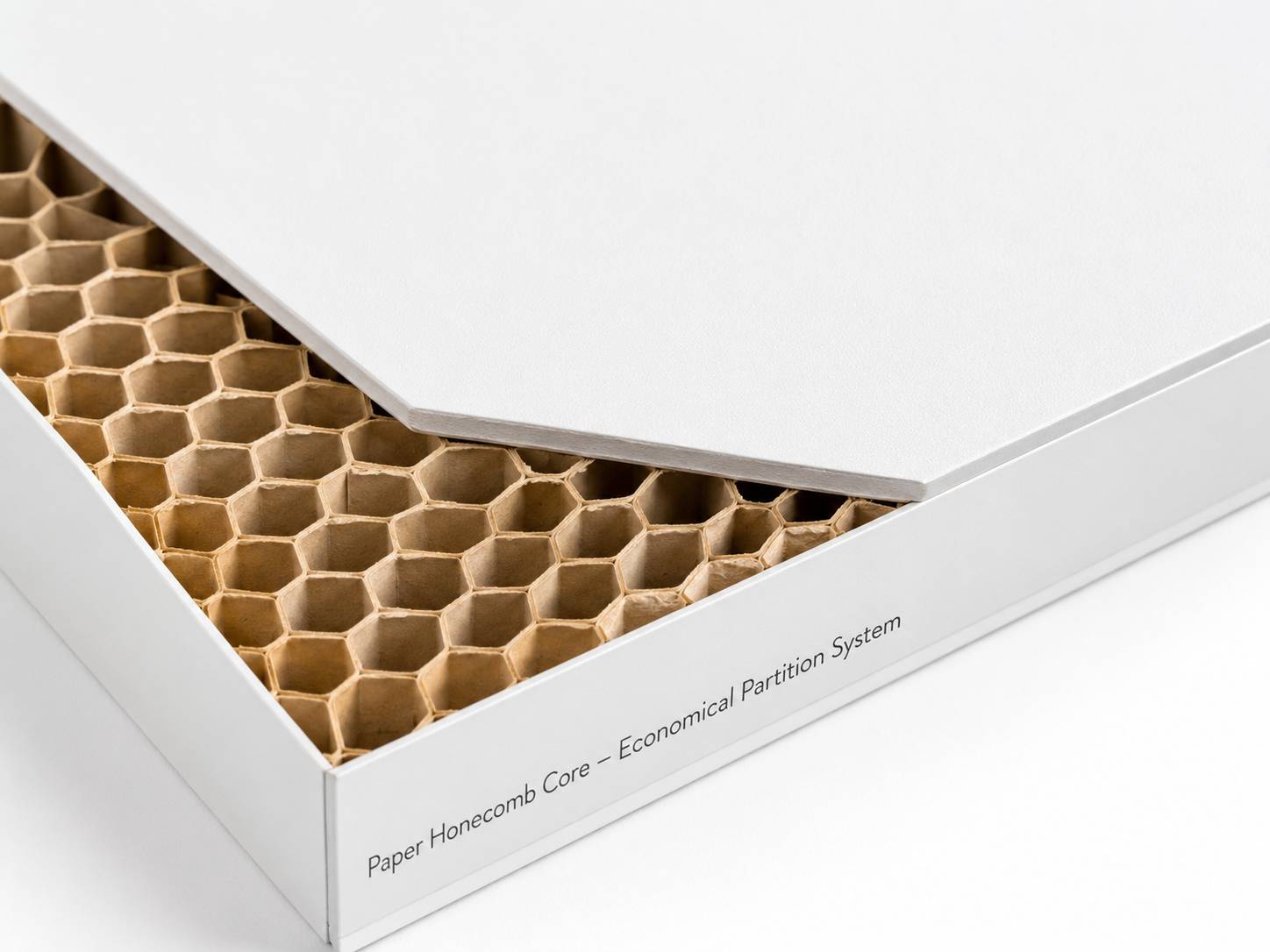

Paper honeycomb cleanroom panel
Cleanroom panel surface

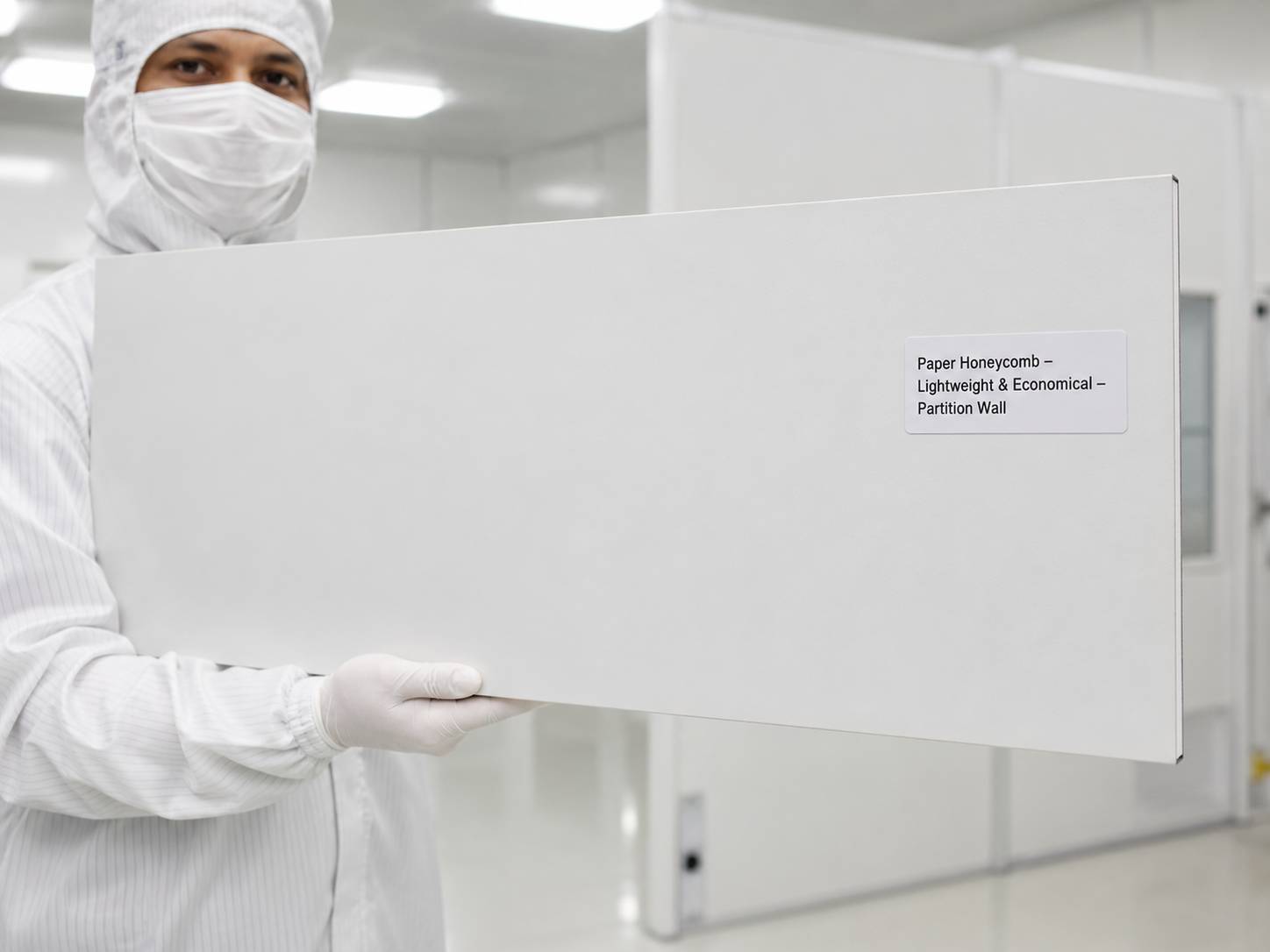

Cleanroom wall panel sample

Cleanroom Panels / Core Material / Paper Honeycomb

Paper Honeycomb Cleanroom Panel

Economical lightweight cleanroom partition panel for areas where fire rating requirements are moderate.

Paper HoneycombLightweightEconomicalPartition

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Cleanroom Panels
Core Material
Paper honeycomb
Thickness
50 / 75 / 100 mm, selected by room specification
Standard Width
950 / 1150 / 1180 mm
Surface
Cleanroom white pre-painted steel
Performance
Lightweight and economical partition system
Position
Cleanroom wall / partition panel
Best For

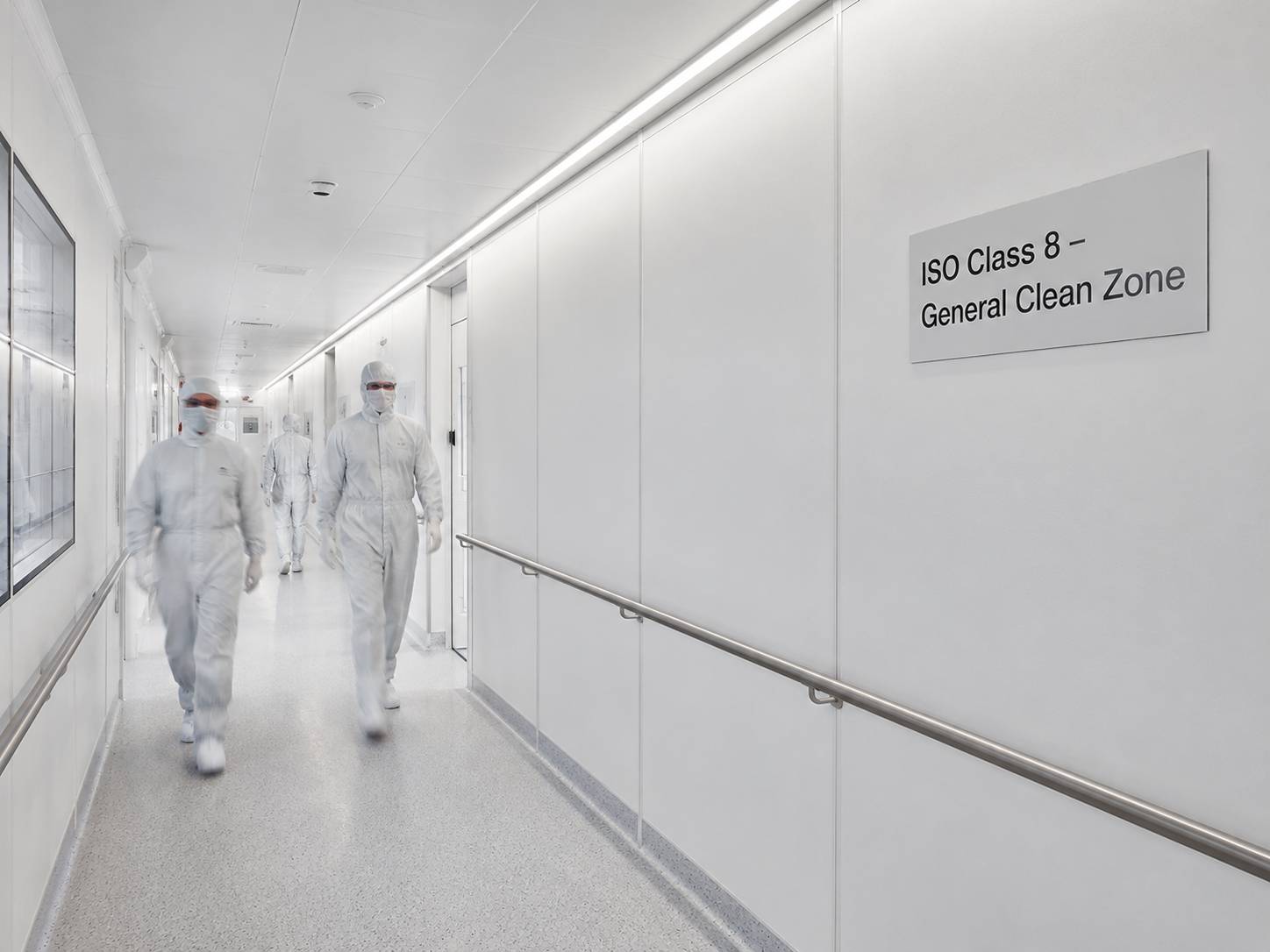

General clean zones, corridors and non-critical partitions

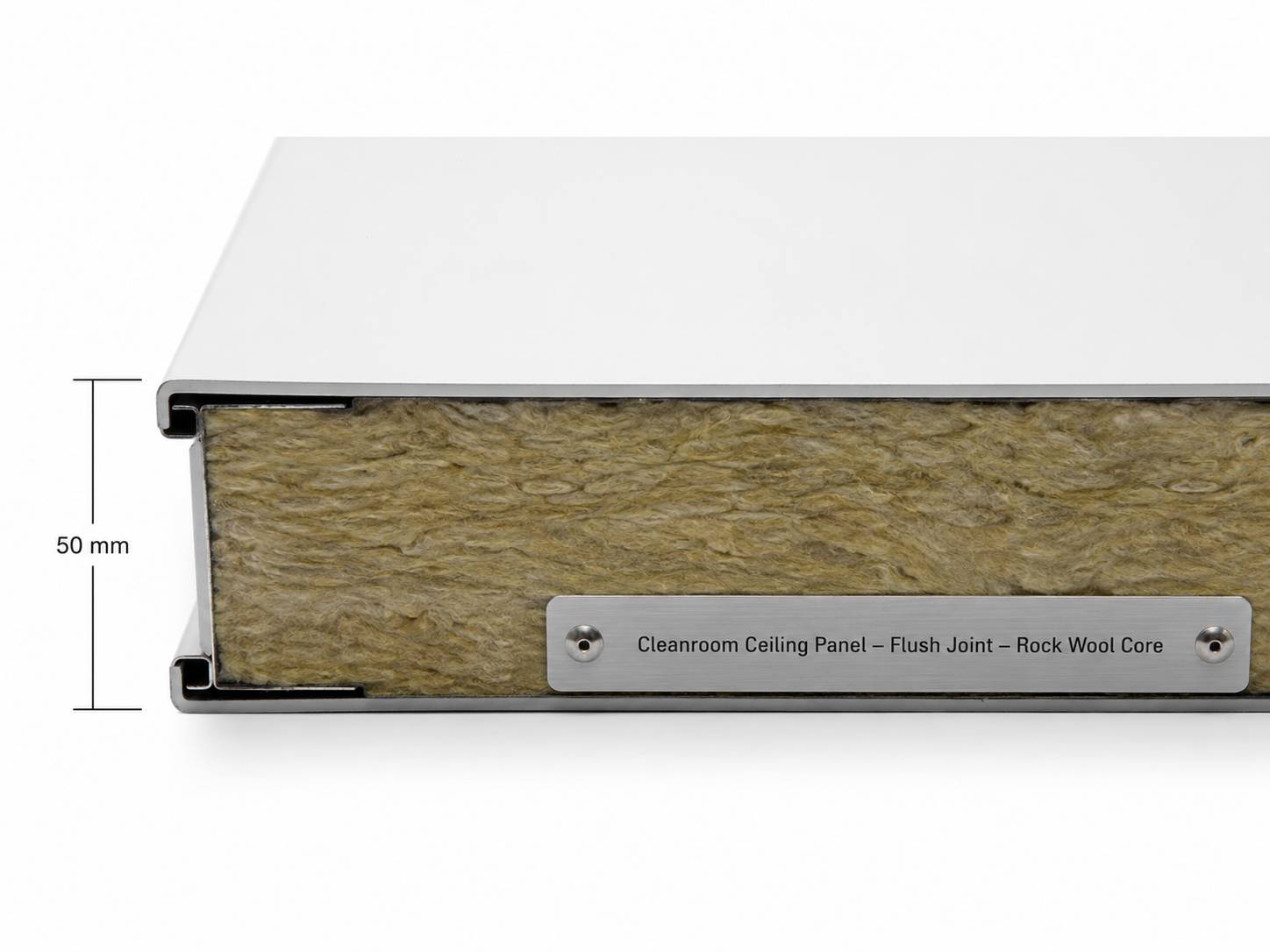

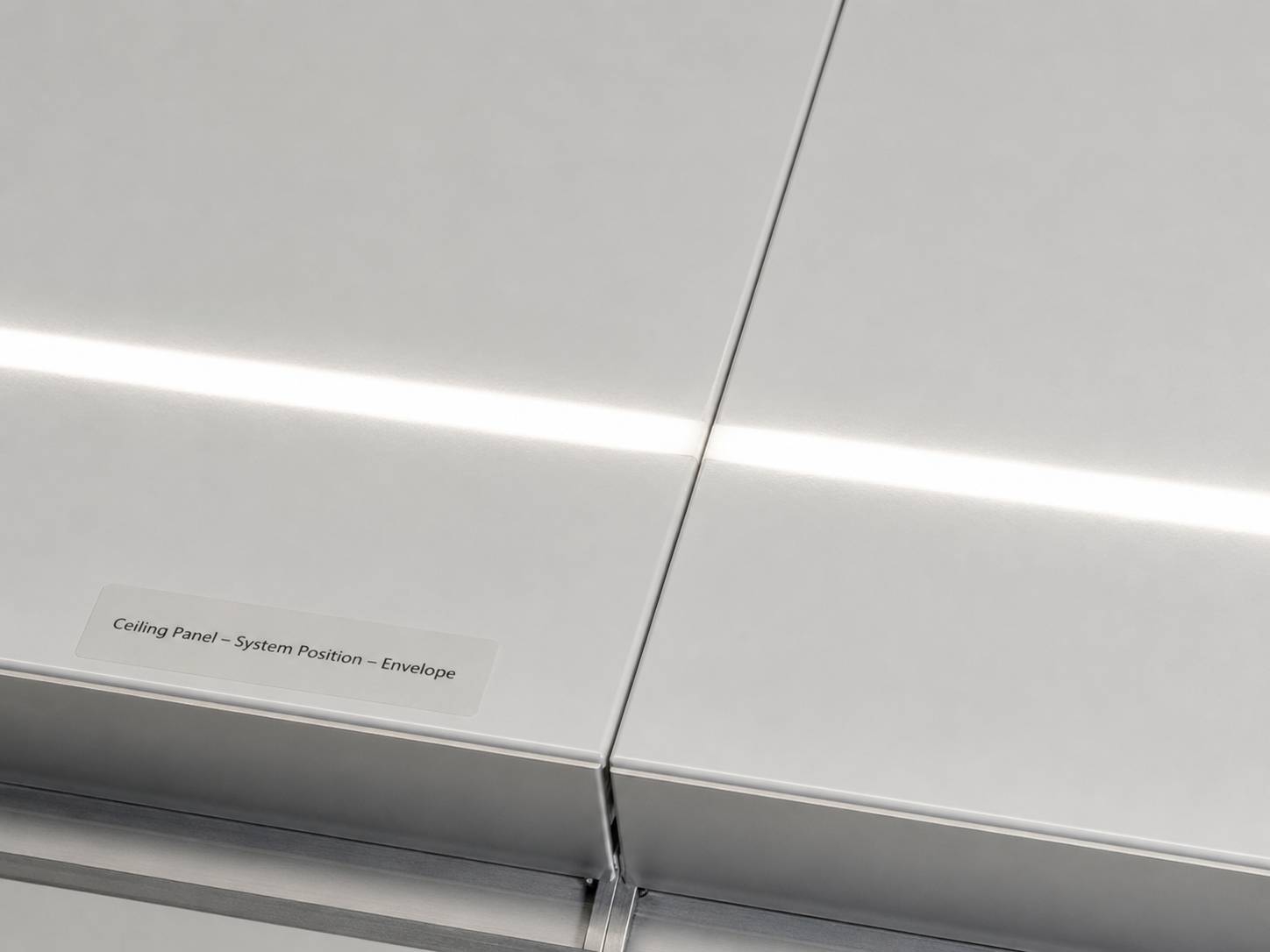

Cleanroom ceiling panel

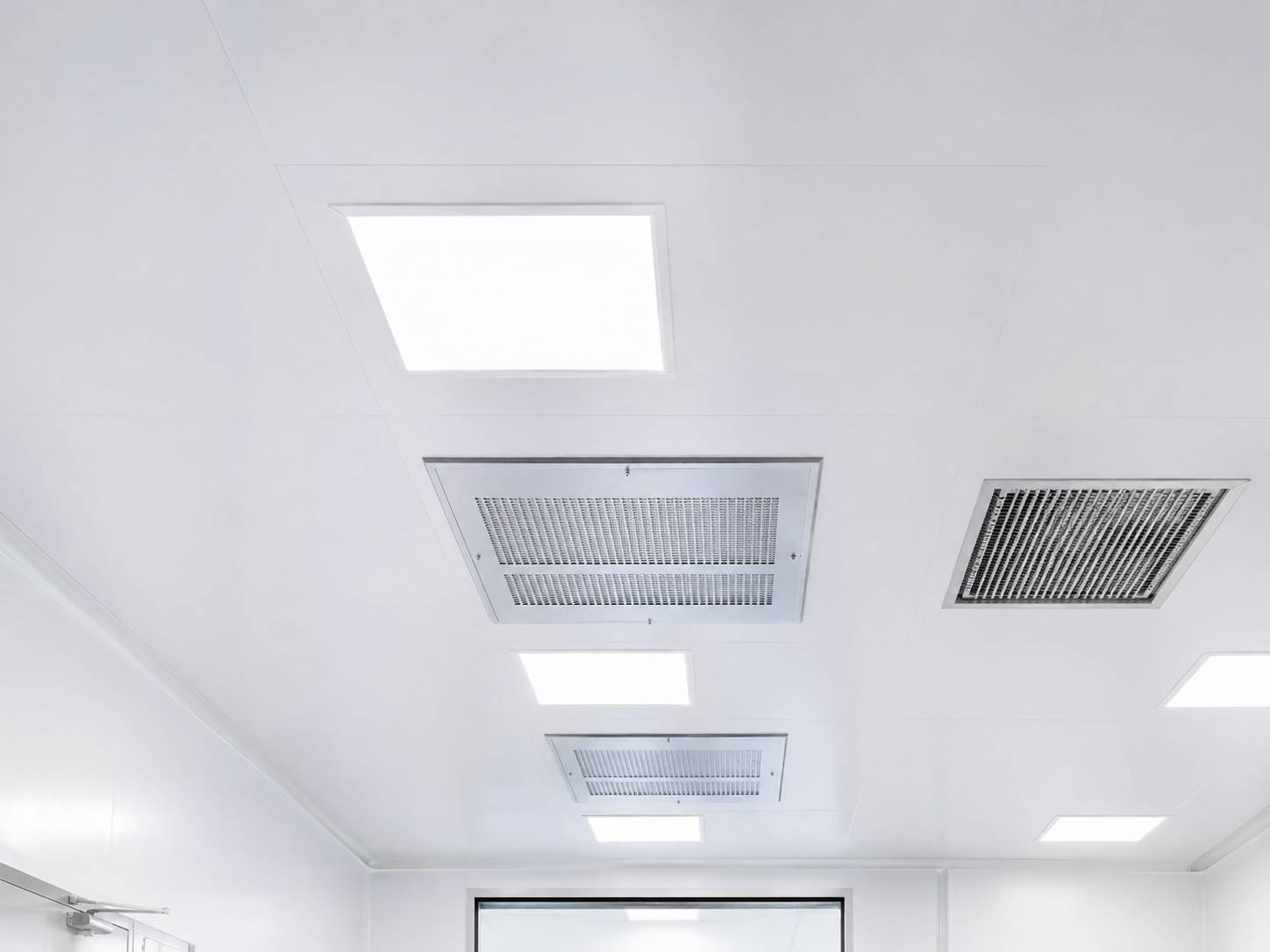

Cleanroom panel edge detail
Cleanroom ceiling panel sample

Cleanroom Panels / System Position / Ceiling Panel

Cleanroom Ceiling Panel

Ceiling panel for cleanroom envelope systems, matched with wall panels, coves, trims and profiles.

Ceiling PanelCleanroom SystemFlush JointEnvelope

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Cleanroom Panels
Core Options
Rock wool / MgO rock wool / honeycomb / PU/PIR
Thickness
50 / 75 / 100 mm
Surface
Cleanroom white steel / HPL option
Joint
Flush ceiling joint / aluminum profile system
Accessories
Coves, corners, trims, lights and air-return details
Application
Pharmaceutical, food, electronics and laboratory ceilings
Note
Confirm span, load and maintenance access before quotation

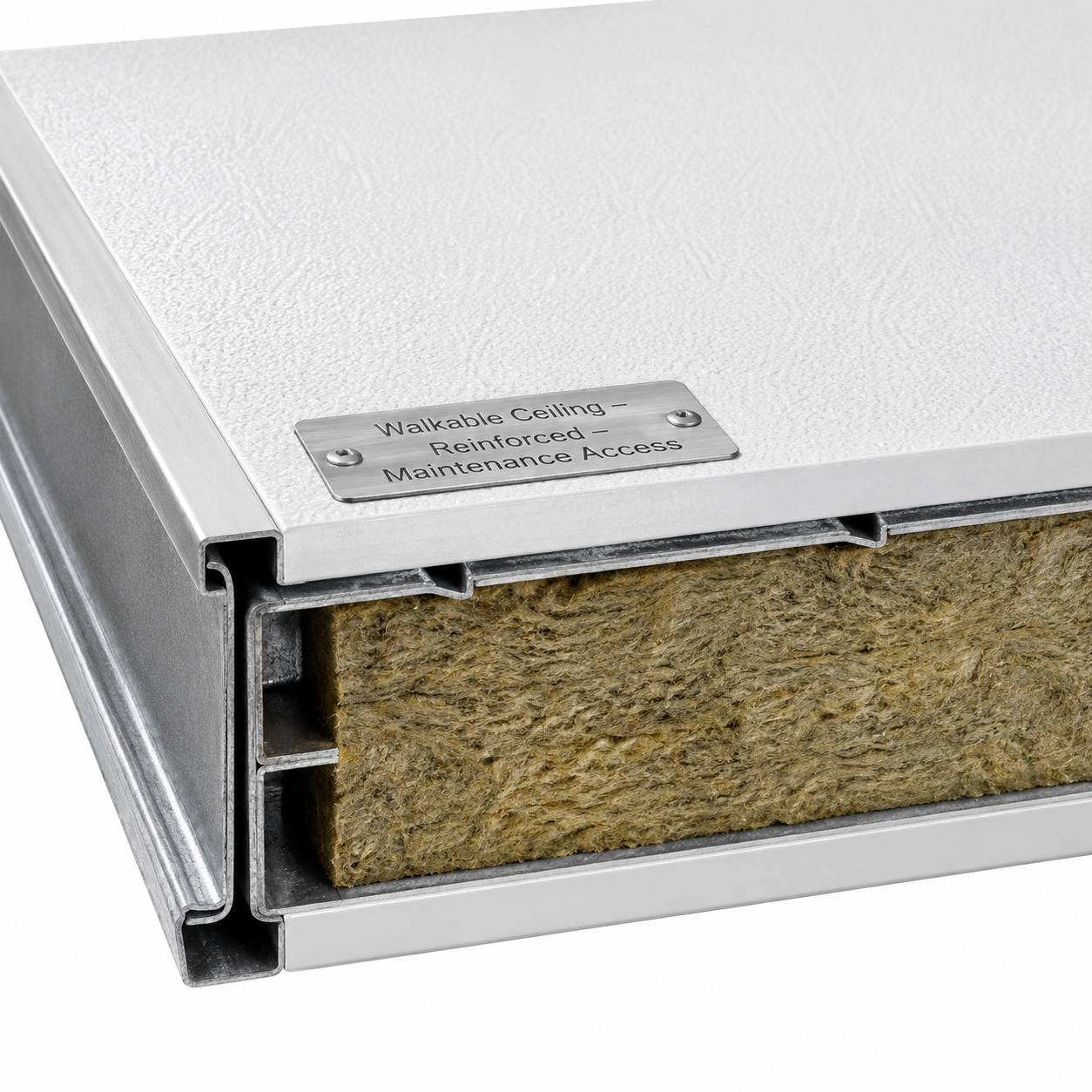

Walkable cleanroom ceiling panel

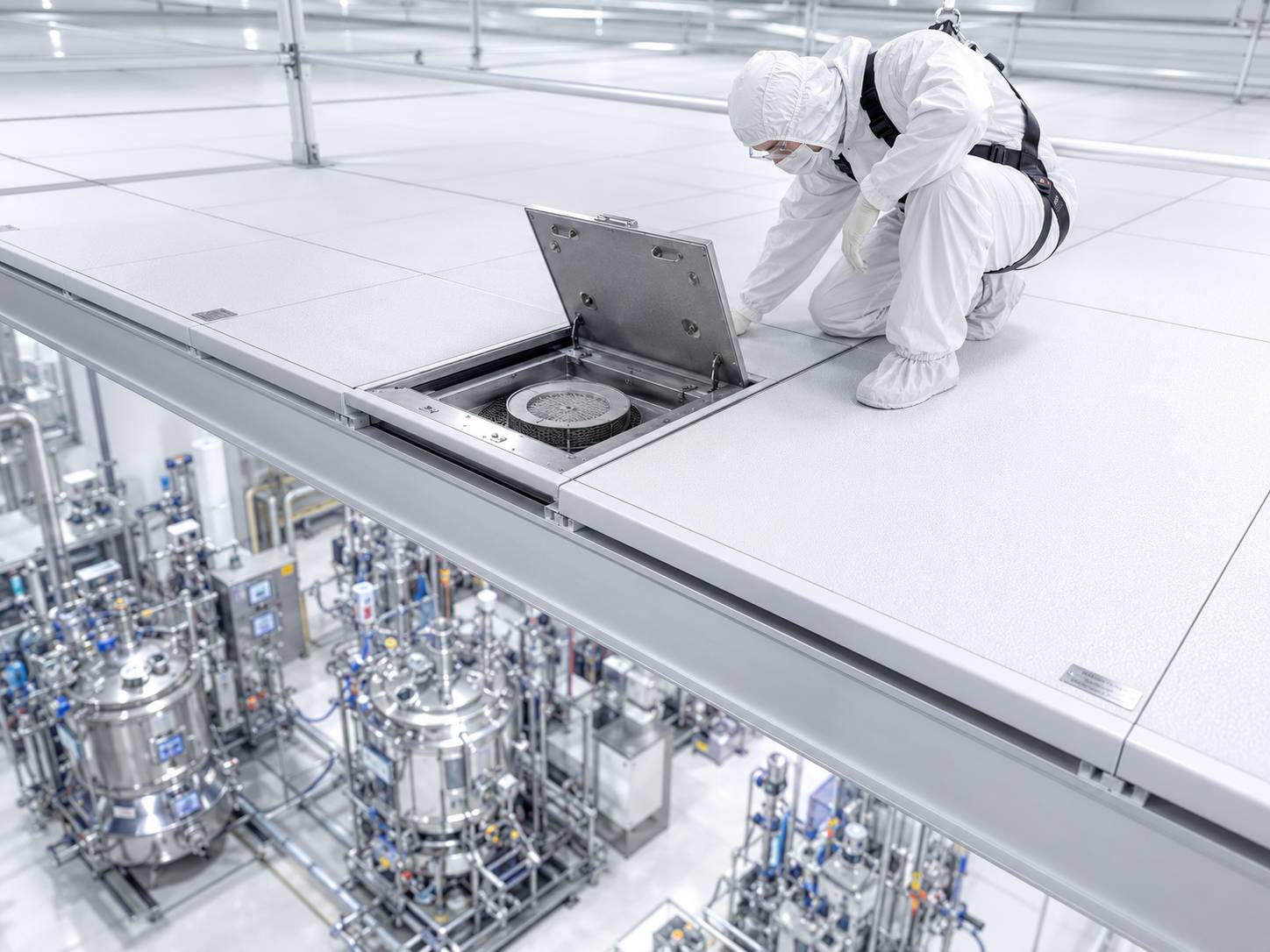

Reinforced cleanroom ceiling surface

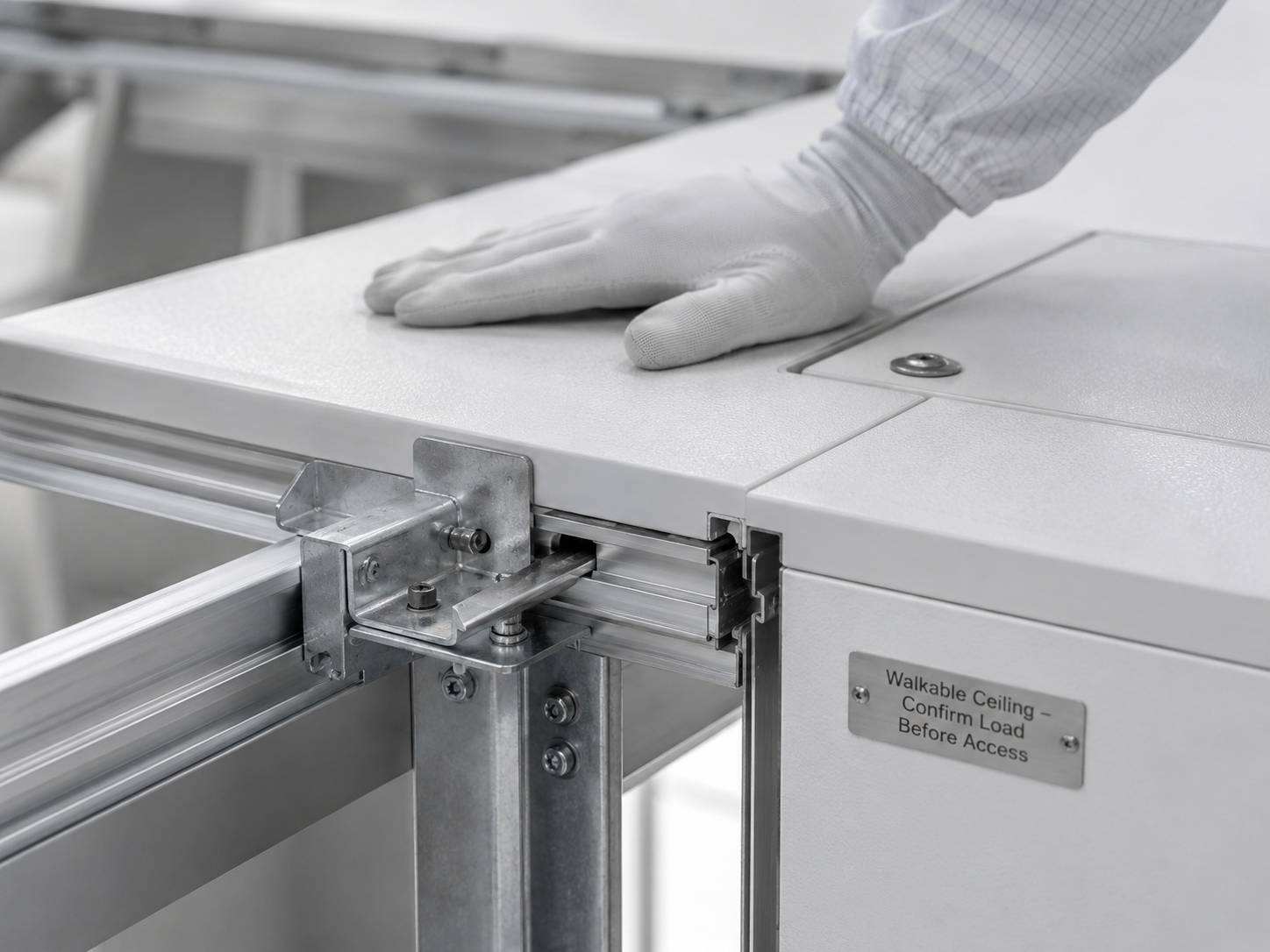

Cleanroom ceiling system sample

Cleanroom Panels / System Position / Walkable Ceiling

Walkable Cleanroom Ceiling Panel

Reinforced ceiling panel for cleanroom systems that require maintenance access above production areas.

Walkable CeilingReinforcedMaintenance AccessPharma

Typical specification range

Final values are confirmed by project drawings, local code requirements, loading plan and selected finish.

Product Family
Cleanroom Panels
Core Options
Rock wool / MgO rock wool / honeycomb, selected by load and fire requirements
Thickness
50 / 75 / 100 mm or engineered option
Surface
Cleanroom white steel / HPL option
System
Reinforced ceiling panel with compatible suspension/support system
Load
Confirmed by maintenance load, span and support layout
Application
Pharmaceutical, electronics and high-spec cleanrooms
Quotation Inputs
Room size, grid layout, load target and ceiling access plan

FAQ

FAQ before quoting cleanroom panels.

Which cleanroom panels should I quote first?

Start with the product that matches the building use, required core material, fire rating, thickness and installation method. If the project is unclear, send drawings and BFTPANEL will recommend the closest product in this cleanroom panels range.

What data is needed for a cleanroom panels quotation?

Send product type, wall or roof area, thickness, coating or finish code, cut length, quantity, destination port and any local fire or hygiene requirement.

Can BFTPANEL support samples, QC files and export packing?

Yes. The export team can arrange samples, product files, packing labels, loading photos and available QC or certification documents before shipment.
